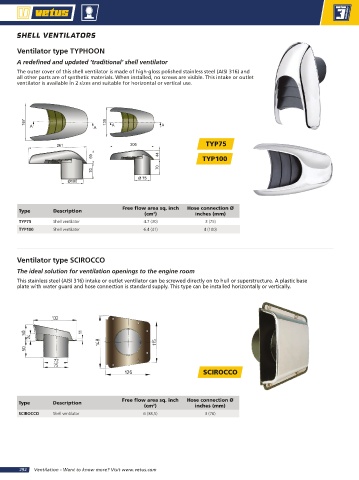

SHELL VENTILATORS

Ventilator type TYPHOON
A redefined and updated ‘traditional’ shell ventilator
The outer cover of this shell ventilator is made of high-gloss polished stainless steel (AISI 316) and
all other parts are of synthetic materials. When installed, no screws are visible. This intake or outlet
ventilator is available in 2 sizes and suitable for horizontal or vertical use.

TYP75

TYP100

Free flow area sq. inch Hose connection Ø
Type Description
2
(cm ) inches (mm)
TYP75 Shell ventilator 4.7 (30) 3 (75)
TYP100 Shell ventilator 6.4 (41) 4 (100)

Ventilator type SCIROCCO
The ideal solution for ventilation openings to the engine room
This stainless steel (AISI 316) intake or outlet ventilator can be screwed directly on to hull or superstructure. A plastic base
plate with water guard and hose connection is standard supply. This type can be installed horizontally or vertically.

SCIROCCO

Free flow area sq. inch Hose connection Ø
Type Description
(cm ) inches (mm)
2
SCIROCCO Shell ventilator 6 (38,5) 3 (76)
