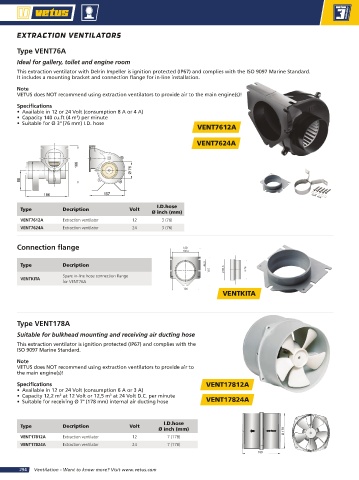

Page 294 - Vetus

EXTRACTION VENTILATORS

Type VENT76A
Ideal for gallery, toilet and engine room
This extraction ventilator with Delrin Impeller is ignition protected (IP67) and complies with the ISO 9097 Marine Standard.
It includes a mounting bracket and connection flange for in-line installation.

Note
VETUS does NOT recommend using extraction ventilators to provide air to the main engine(s)!
Specifications
• Available in 12 or 24 Volt (consumption 8 A or 4 A)
• Capacity 140 cu.ft (4 m ) per minute
3
• Suitable for Ø 3"(76 mm) I.D. hose
VENT7612A
VENT7624A

I.D.hose
Type Decription Volt
Ø inch (mm)
VENT7612A Extraction ventilator 12 3 (76)
VENT7624A Extraction ventilator 24 3 (76)

Connection flange 106,5 106,5
120
120
Type Decription 46,5 46,5
115 115 83,3 83,3 76 76
Spare in-line hose connection flange
VENTKITA
for VENT76A
106 106
VENTKITA

Type VENT178A
Suitable for bulkhead mounting and receiving air ducting hose
This extraction ventilator is ignition protected (IP67) and complies with the
ISO 9097 Marine Standard.
Note
VETUS does NOT recommend using extraction ventilators to provide air to
the main engine(s)!

Specifications VENT17812A
• Available in 12 or 24 Volt (consumption 6 A or 3 A)
• Capacity 12,2 m at 12 Volt or 12,5 m at 24 Volt D.C. per minute
3
3
• Suitable for receiving Ø 7"(178 mm) internal air ducting hose VENT17824A

I.D.hose
Type Decription Volt
Ø inch (mm) Ø 178
VENT17812A Extraction ventilator 12 7 (178) Ø 178
VENT17824A Extraction ventilator 24 7 (178)
160
160
