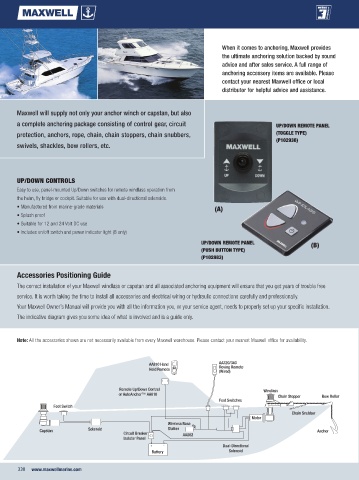

When it comes to anchoring, Maxwell provides
the ultimate anchoring solution backed by sound
advice and after sales service. A full range of
anchoring accessory items are available. Please
contact your nearest Maxwell office or local
distributor for helpful advice and assistance.

Maxwell will supply not only your anchor winch or capstan, but also

a complete anchoring package consisting of control gear, circuit UP/DOWN REMOTE PANEL
protection, anchors, rope, chain, chain stoppers, chain snubbers, (TOGGLE TYPE)
(P102938)
swivels, shackles, bow rollers, etc.

UP/DOWN CONTROLS

Easy to use, panel-mounted Up/Down switches for remote windlass operation from
the helm, fly bridge or cockpit. Suitable for use with dual-directional solenoids.
• Manufactured from marine-grade materials (A)
• Splash proof
• Suitable for 12 and 24 Volt DC use
• Includes on/off switch and power indicator light (B only)

UP/DOWN REMOTE PANEL (B)
(PUSH BUTTON TYPE)
(P102983)

Accessories Positioning Guide
The correct installation of your Maxwell windlass or capstan and all associated anchoring equipment will ensure that you get years of trouble free
service. It is worth taking the time to install all accessories and electrical wiring or hydraulic connections carefully and professionally.

Your Maxwell Owner’s Manual will provide you with all the information you, or your service agent, needs to properly set up your specific installation.
The indicative diagram gives you some idea of what is involved and is a guide only.

Note: All the accessories shown are not necessarily available from every Maxwell warehouse. Please contact your nearest Maxwell office for availability.

AA810 Hand AA320/340
Roving Remote
Held Remote (Wired)

Remote Up/Down Control Windlass
or AutoAnchor™ AA810 Chain Stopper Bow Roller
Foot Switches
Foot Switch
Chain Snubber
Motor
Wireless Base
Capstan Solenoid Station Anchor
Circuit Breaker AA802
Isolator Panel
Dual-Directional
Battery Solenoid
