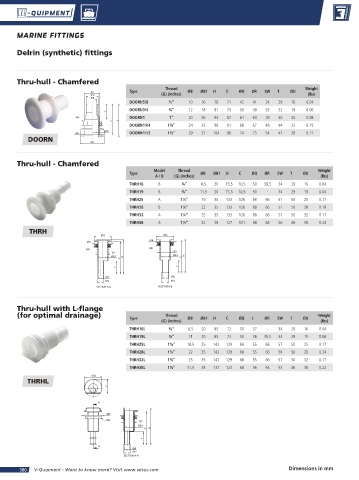

MARINE FITTINGS

Delrin (synthetic) fittings

Thru-hull - Chamfered
Thread Weight
G* Type ØB ØB1 H C ØQ ØR SW T ØU
U (G) (inches) (lbs)
B
DOORN5/8 ½” 10 16 76 71 42 41 24 29 16 0.04
DOORN3/4 ¾” 12 18 81 75 50 49 32 32 19 0.06
T
SW DOORN1 1” 20 26 94 87 61 60 39 40 25 0.08
C H
DOORN11/4 1¼” 24 32 98 91 68 67 48 44 32 0.15
B1
R DOORN11/2 1½” 29 37 104 96 74 73 54 47 38 0.17
DOORN
Q
Thru-hull - Chamfered
Model Thread Weight
Type ØB ØB1 H C ØQ ØR SW T ØU
A / B (G) (inches) (lbs)
THRH16 B ¾” 8,5 20 73,5 70,5 50 39,5 34 29 16 0.04
THRH19 B ¾” 11,5 20 73,5 70,5 50 - 34 29 19 0.04
THRH25 A 1¼” 19 35 133 126 68 66 57 50 25 0.17
THRH28 B 1¼” 22 35 133 126 68 66 57 50 28 0.19
THRH32 A 1¼” 25 35 133 126 68 66 57 50 32 0.17
THRH38 A 1½” 32 38 127 121 68 66 56 46 38 0.24
THRH
Q Q
R
R
SW SW G*
G*
B1
B1 H C H
C
T T
B B
U U
SECTION A-A SECTION B-B

Thru-hull with L-flange
(for optimal drainage) Type Thread ØB ØB1 H C ØQ L ØR SW T ØU Weight
(G) (inches) (lbs)
THRH16L ¾” 8,5 20 85 72 50 37 - 34 29 16 0.04
THRH19L ¾” 11 20 85 73 50 38 39,5 34 29 19 0.06
THRH25L 1¼” 18,5 35 142 129 68 55 66 57 50 25 0.17
THRH28L 1½” 22 35 142 129 68 55 66 56 50 28 0.24
THRH32L 1¼” 25 35 142 129 68 55 66 57 50 32 0.17
THRH38L 1½” 31,5 38 137 123 68 56 64 53 46 38 0.22
Q
THRHL
L

A
ØR
SW G*
B1
C H
T
A
B
U
SECTION A-A
380 V-Quipment - Want to know more? Visit www.vetus.com Dimensions in mm
