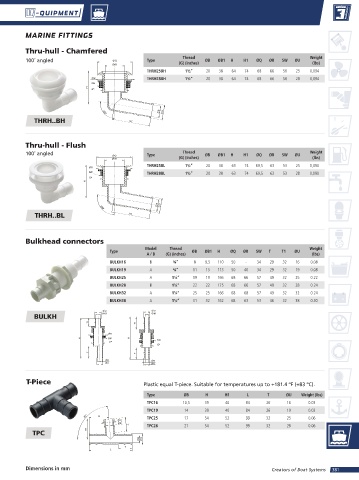

MARINE FITTINGS

Thru-hull - Chamfered
Thread Weight
100˚ angled Q Type ØB ØB1 H H1 ØQ ØR SW ØU
B1 (G) (inches) (lbs)
THRH25BH 1½” 20 38 64 74 68 66 56 25 0,094
R THRH28BH 1½” 20 38 64 74 68 66 56 28 0,094
SW
H G*

B U
100°

THRH..BH H1
Thru-hull - Flush
100˚ angled Q Type Thread ØB ØB1 H H1 ØQ ØR SW ØU Weight
B1 (G) (inches) (lbs)
THRH25BL 1½” 20 38 63 74 69,5 63 53 25 0,090
R
SW THRH28BL 1½” 20 38 63 74 69,5 63 53 28 0,090
G*
H

B U

100°
THRH..BL H1

Bulkhead connectors
Model Thread Weight
Type ØB ØB1 H ØQ ØR SW T T1 ØU
A / B (G) (inches) (lbs)
BULKH16 B ¾” 8 9,5 110 50 - 34 29 32 16 0.08
BULKH19 A ¾” 11 13 113 50 40 34 29 32 19 0.08
BULKH25 A 1¼” 19 19 166 68 66 57 49 32 25 0.22
BULKH28 B 1¼” 22 22 175 68 66 57 49 32 28 0.24
BULKH32 A 1¼” 25 25 166 68 68 57 49 32 32 0.24
BULKH38 A 1½” 31 32 162 68 63 53 46 32 38 0.30
U U
BULKH B1 B1
T1 T1

R
H SW H SW
G*
G*
T
T
B B
U U
SECTION A-A
SECTION B-B
T-Piece Plastic equal T-piece. Suitable for temperatures up to +181.4 ºF (+83 ºC).
Type ØB H H1 L T ØU Weight (lbs)
TPC16 10,5 39 40 84 26 16 0.03
TPC19 14 39 40 84 26 19 0.03
85° H TPC25 17 54 52 99 32 25 0.06
U
B T TPC28 21 54 52 99 32 28 0.06
TPC H1
B U

T
L

Dimensions in mm Creators of Boat Systems 381
