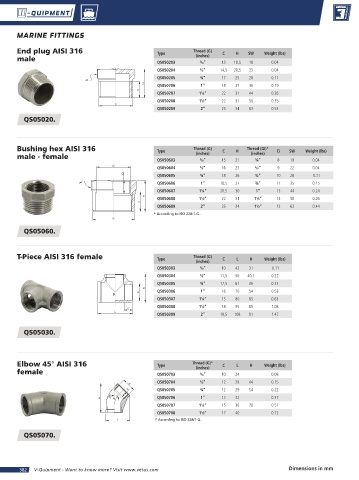

Page 382 - Vetus

MARINE FITTINGS

End plug AISI 316 Type Thread (G) C H SW Weight (lbs)
male (inches)
QS050203 3 /8” 13 18,5 18 0.04
QS050204 ½” 14,5 20,5 23 0.04
QS050205 ¾” 17 25 28 0.11
SW
H QS050206 1” 18 27 36 0.19
C
QS050207 1¼” 22 31 44 0.26
QS050208 1½” 22 31 50 0.35
G
QS050209 2” 25 34 63 0.53
QS05020.

Bushing hex AISI 316 Type Thread (G) C H Thread (Gi)* Ci SW Weight (lbs)
male - female (inches) (inches)
QS050603 3 /8” 15 21 ¼” 8 19 0.04
Gi
QS050604 ½” 16 23 3 /8” 9 22 0.04
Ci QS050605 ¾” 18 26 ½” 10 28 0.11
SW QS050606 1” 18,5 27 ¾” 11 35 0.15
QS050607 1¼” 20,5 30 1” 13 44 0.24
H QS050608 1½” 22 31 1¼” 14 50 0.26
C
QS050609 2” 25 34 1½” 13 63 0.44
* According to ISO 228/1-G..
G
QS05060.

T-Piece AISI 316 female Thread (G)
Type
(inches) C L H Weight (lbs)
QS050303 3 /8” 10 42 31 0.11
QS050304 ½” 11,5 50 40,7 0.22
QS050305 ¾” 12,5 61 46 0.33
H
G QS050306 1” 16 70 54 0.53
QS050307 1¼” 15 80 65 0.63
QS050308 1½” 18 95 69 1.08
C
L
QS050309 2” 18,5 108 81 1.47
QS05030.

Elbow 45° AISI 316 Type Thread (G)* C L H Weight (lbs)
(inches)
female QS050703 3 /8” 10 24 0.08
QS050704 ½” 12 38 44 0.15
G
C QS050705 ¾” 12 29 54 0.22
45°
H QS050706 1” 13 32 0.37
QS050707 1¼” 15 36 70 0.57
QS050708 1½” 17 40 0.72
L * According to ISO 228/1-G..

QS05070.

382 V-Quipment - Want to know more? Visit www.vetus.com Dimensions in mm
