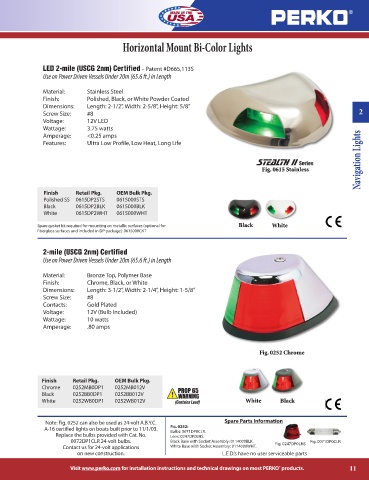

Page 11 - Perko

Horizontal Mount Bi-Color Lights

LED 2-mile (USCG 2nm) Certified - Patent #D665,113S
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Stainless Steel
Finish: Polished, Black, or White Powder Coated
Dimensions: Length: 2-1/2”, Width: 2-5/8”, Height: 5/8”
Screw Size: #8 2
Voltage: 12V LED
Wattage: 3.75 watts
Navigation Lights
Amperage: <0.25 amps
Features: Ultra Low Profile, Low Heat, Long Life

Stealth II Series
Fig. 0615 Stainless

Finish Retail Pkg. OEM Bulk Pkg.
Polished SS 0615DP2STS 0615000STS
Black 0615DP2BLK 0615000BLK
White 0615DP2WHT 0615000WHT

Spare gasket kit required for mounting on metallic surfaces (optional for Black White
fiberglass surfaces and included in DP package): 0615000GKT

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Bronze Top, Polymer Base
Finish: Chrome, Black, or White
Dimensions: Length: 3-1/2”, Width: 2-1/4”, Height: 1-5/8”
Screw Size: #8
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps

Fig. 0252 Chrome

Finish Retail Pkg. OEM Bulk Pkg.
Chrome 0252MB0DP1 0252MB012V
Black 0252BB0DP1 0252BB012V
White 0252WB0DP1 0252WB012V White Black

Note: Fig. 0252 can also be used as 24-volt A.B.Y.C. Spare Parts Information
FIG. 0252:
A-16 certified lights on boats built prior to 11/1/03.
Bulbs: 0071DP0CLR.
Replace the bulbs provided with Cat. No. Lens: 0247DP0LNS.
0072DP1CLR 24-volt bulbs. Black Base with Socket Assembly: 0114000BLK. Fig. 0247DP0LNS Fig. 0071DP0CLR
Contact us for 24-volt applications White Base with Socket Assembly: 0114000WHT.
on new construction. L.E.D.’s have no user serviceable parts
®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 11
