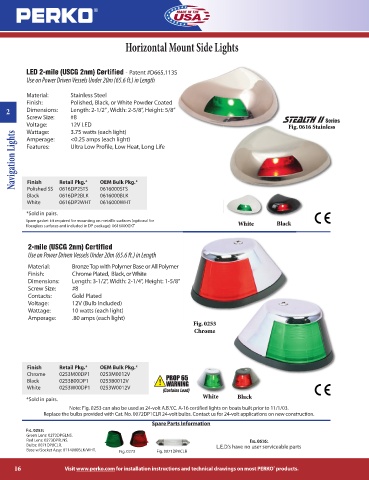

Page 16 - Perko

Horizontal Mount Side Lights

LED 2-mile (USCG 2nm) Certified - Patent #D665,113S
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Stainless Steel
Finish: Polished, Black, or White Powder Coated
2 Dimensions: Length: 2-1/2” , Width: 2-5/8”, Height: 5/8”
Screw Size: #8 Stealth II Series
Voltage: 12V LED Fig. 0616 Stainless
Wattage: 3.75 watts (each light)
Navigation Lights Features: Ultra Low Profile, Low Heat, Long Life
Amperage: <0.25 amps (each light)

Finish
0616DP2STS 0616000STS
Polished SS
0616DP2BLK 0616000BLK
Black Retail Pkg.* OEM Bulk Pkg.*
White 0616DP2WHT 0616000WHT
*Sold in pairs.
Spare gasket kit required for mounting on metallic surfaces (optional for
fiberglass surfaces and included in DP package): 0616000GKT White Black

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Bronze Top with Polymer Base or All Polymer
Finish: Chrome Plated, Black, or White
Dimensions: Length: 3-1/2”, Width: 2-1/4”, Height: 1-5/8”
Screw Size: #8
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts (each light)
Amperage: .80 amps (each light)
Fig. 0253
Chrome

Finish Retail Pkg.* OEM Bulk Pkg.*
Chrome 0253M00DP1 0253M0012V
Black 0253B00DP1 0253B0012V
White 0253W00DP1 0253W0012V
White Black
*Sold in pairs.
Note: Fig. 0253 can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03.
Replace the bulbs provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24-volt applications on new construction.
Spare Parts Information
FIG. 0253:
Green Lens: 0273DPGLNS.
Red Lens: 0273DPRLNS. FIG. 0616:
Bulbs: 0071DP0CLR. L.E.D.’s have no user serviceable parts
Base w/Socket Assy: 0114000BLK/WHT. Fig. 0273 Fig. 0071DP0CLR

16 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
