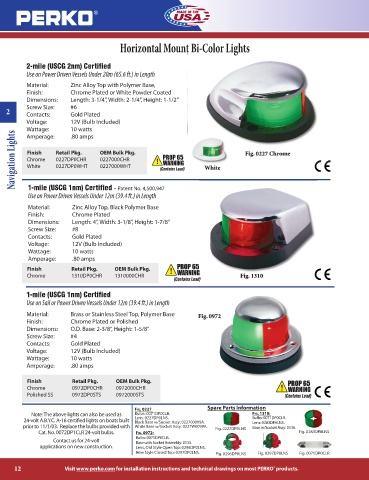

Page 12 - Perko

Horizontal Mount Bi-Color Lights

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Zinc Alloy Top with Polymer Base,
Finish: Chrome Plated or White Powder Coated
Dimensions: Length: 3-1/4”, Width: 2-1/4”, Height: 1-1/2”
Screw Size: #6
2
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Navigation Lights Finish Retail Pkg. OEM Bulk Pkg. White Fig. 0227 Chrome
Amperage: .80 amps

Chrome
0227DP0CHR 0227000CHR
White
0227DP0WHT 0227000WHT

1-mile (USCG 1nm) Certified - Patent No. 4,500,947
Use on Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Zinc Alloy Top, Black Polymer Base
Finish: Chrome Plated
Dimensions: Length: 4”, Width: 3-1/8”, Height: 1-7/8”
Screw Size: #8
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps
Finish Retail Pkg. OEM Bulk Pkg.
Chrome 1310DP0CHR 1310000CHR Fig. 1310

1-mile (USCG 1nm) Certified
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Brass or Stainless Steel Top, Polymer Base Fig. 0972
Finish: Chrome Plated or Polished
Dimensions: O.D. Base: 2-3/8”, Height: 1-5/8”
Screw Size: #4
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps

Finish Retail Pkg. OEM Bulk Pkg.
Chrome 0972DP0CHR 0972000CHR
Polished SS 0972DP0STS 0972000STS

FIG. 0227 Spare Parts Information
Note: The above lights can also be used as Bulbs: 0071DP0CLR. FIG. 1310:
24-volt A.B.Y.C. A-16 certified lights on boats built Lens: 0227DP0LNS. Bulbs: 0071DP0CLR.
Black Base w/Socket Assy: 022700099A.
Lens: 0283DPALNS.
prior to 11/1/03. Replace the bulbs provided with White Base w/Socket Assy: 0227W0099A.
Fig. 0227DP0LNS Base w/Socket Assy: 0136.
Cat. No. 0072DP1CLR 24-volt bulbs. FIG. 0972: Fig. 0283DPALNS
Bulbs: 0071DP0CLR.
Contact us for 24-volt
Base with Socket Assembly: 0135.
applications on new construction. Lens, Old Style Open Top: 0296DP0LNS.
New Style Closed Top: 0297DP0LNS. Fig. 0296DP0LNS Fig. 0297DP0LNS Fig. 0071DP0CLR
12 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
