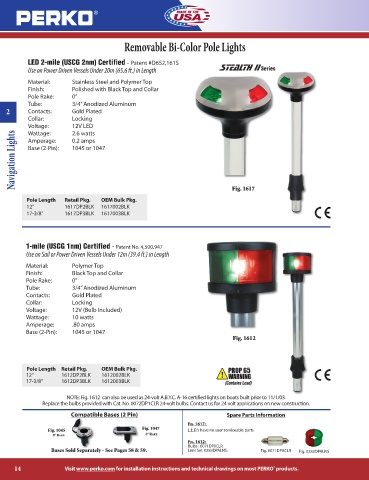

Page 14 - Perko

Removable Bi-Color Pole Lights

LED 2-mile (USCG 2nm) Certified - Patent #D652,161S
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length Stealth IISeries
Material: Stainless Steel and Polymer Top
Finish: Polished with Black Top and Collar
Pole Rake: 0°
Tube: 3/4” Anodized Aluminum
2 Contacts: Gold Plated
Collar: Locking
Voltage: 12V LED
Navigation Lights Base (2-Pin): 1045 or 1047
Wattage: 2.6 watts
Amperage: 0.2 amps

Pole Length Retail Pkg. OEM Bulk Pkg. Fig. 1617
12” 1617DP2BLK 1617002BLK
17-3/8” 1617DP3BLK 1617003BLK

1-mile (USCG 1nm) Certified - Patent No. 4,500,947
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Polymer Top
Finish: Black Top and Collar
Pole Rake: 0°
Tube: 3/4” Anodized Aluminum
Contacts: Gold Plated
Collar: Locking
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps
Base (2-Pin): 1045 or 1047
Fig. 1612

Pole Length Retail Pkg. OEM Bulk Pkg.
12” 1612DP2BLK 1612002BLK
17-3/8” 1612DP3BLK 1612003BLK

NOTE: Fig. 1612 can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03.
Replace the bulbs provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24 volt applications on new construction.
Compatible Bases (2 Pin) Spare Parts Information
FIG. 1617:
Fig. 1047
Fig. 1045 L.E.D.’s have no user serviceable parts
0° RAKE 0° RAKE
FIG. 1612:
Bulbs : 0071DP0CLR.
Bases Sold Separately - See Pages 58 & 59. Lens Set: 0283DPALNS. Fig. 0071DP0CLR Fig. 0283DPALNS

14 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
