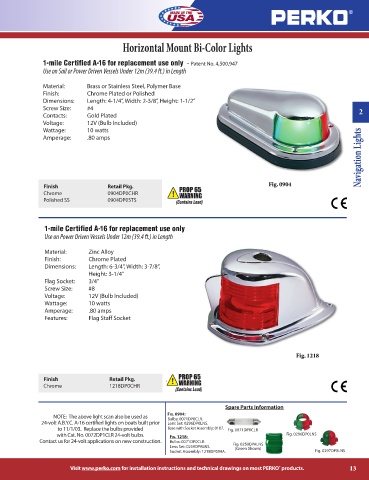

Horizontal Mount Bi-Color Lights

1-mile Certified A-16 for replacement use only - Patent No. 4,500,947
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Brass or Stainless Steel, Polymer Base
Finish: Chrome Plated or Polished
Dimensions: Length: 4-1/4”, Width: 2-3/8”, Height: 1-1/2”
Screw Size: #4 2
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Navigation Lights
Amperage: .80 amps

Fig. 0904
Finish Retail Pkg.
Chrome 0904DP0CHR
Polished SS 0904DP0STS

1-mile Certified A-16 for replacement use only
Use on Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Length: 6-3/4”, Width: 3-7/8”,
Height: 3-1/4”
Flag Socket: 3/4”
Screw Size: #8
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps
Features: Flag Staff Socket

Fig. 1218

Finish Retail Pkg.
Chrome 1218DP0CHR

Spare Parts Information
FIG. 0904:
NOTE: The above light scan also be used as
Bulbs: 0071DP0CLR.
24-volt A.B.Y.C. A-16 certified lights on boats built prior Lens Set: 0296DP0LNS.
to 11/1/03. Replace the bulbs provided Base with Socket Assembly: 0107. Fig. 0071DP0CLR
with Cat. No. 0072DP1CLR 24-volt bulbs. Fig. 0296DP0LNS
FIG. 1218:
Contact us for 24-volt applications on new construction. Bulbs: 0071DP0CLR.
Lens Set: 0259DPALNS. Fig. 0259DPALNS
(Green Shown)
Socket Assembly: 1218DP099A. Fig. 0297DP0LNS
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 13
®
