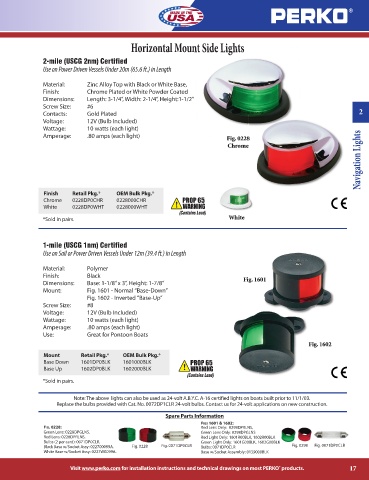

Page 17 - Perko

Horizontal Mount Side Lights

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Zinc Alloy Top with Black or White Base,
Finish: Chrome Plated or White Powder Coated
Dimensions: Length: 3-1/4”, Width: 2-1/4”, Height:1-1/2”
Screw Size: #6
Contacts: Gold Plated 2
Voltage: 12V (Bulb Included)
Wattage: 10 watts (each light)
Navigation Lights
Amperage: .80 amps (each light)
Fig. 0228
Chrome

Finish Retail Pkg.* OEM Bulk Pkg.*
Chrome 0228DP0CHR 0228000CHR
White 0228DP0WHT 0228000WHT
*Sold in pairs. White

1-mile (USCG 1nm) Certified
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length

Material: Polymer
Finish: Black
Fig. 1601
Dimensions: Base: 1-1/8” x 3”, Height: 1-7/8”
Mount: Fig. 1601 - Normal “Base-Down”
Fig. 1602 - Inverted “Base-Up”
Screw Size: #8
Voltage: 12V (Bulb Included)
Wattage: 10 watts (each light)
Amperage: .80 amps (each light)
Use: Great for Pontoon Boats
Fig. 1602
Mount Retail Pkg.* OEM Bulk Pkg.*
Base Down 1601DP0BLK 1601000BLK
Base Up 1602DP0BLK 1602000BLK
*Sold in pairs.

Note: The above lights can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03.
Replace the bulbs provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24-volt applications on new construction.
Spare Parts Information
FIGS 1601 & 1602:
FIG. 0228: Red Lens Only: 0298DPRLNS,
Green Lens: 0228DPGLNS. Green Lens Only: 0298DPGLNS
Red Lens: 0228DPRLNS. Red Light Only: 1601R00BLK, 1602R00BLK
Bulbs (2 per card): 0071DP0CLR. Green Light Only: 1601G00BLK, 1602G00BLK
Black Base w/Socket Assy: 022700099A. Fig. 0228 Fig. 0071DP0CLR Bulbs: 0071DP0CLR Fig. 0298 Fig. 0071DP0CLR
White Base w/Socket Assy: 0227W0099A. Base w/Socket Assembly: 0139000BLK

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 17
®
