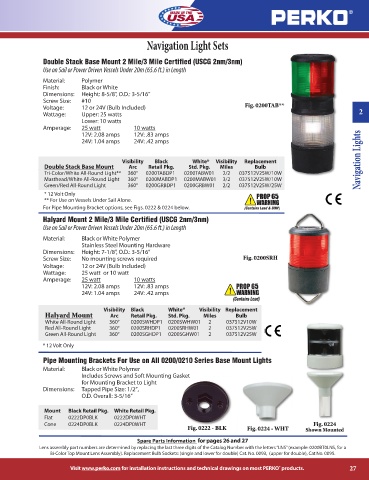

Page 27 - Perko

Navigation Light Sets

Double Stack Base Mount 2 Mile/3 Mile Certified (USCG 2nm/3nm)
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Polymer
Finish: Black or White
Dimensions: Height: 8-5/8”, O.D.: 3-5/16”
Screw Size: #10
Voltage: 12 or 24V (Bulb Included) Fig. 0200TAB** 2
Wattage: Upper: 25 watts
Lower: 10 watts
Amperage: 25 watt 10 watts
12V: 2.08 amps 12V: .83 amps
24V: 1.04 amps 24V: .42 amps

Visibility Black White* Visibility Replacement Navigation Lights
Double Stack Base Mount Arc Retail Pkg. Std. Pkg. Miles Bulb
Tri-Color/White All-Round Light** 360° 0200TABDP1 0200TABW01 2/2 037512V25W/10W
Masthead/White All-Round Light 360° 0200MABDP1 0200MABW01 3/2 037512V25W/10W
Green/Red All-Round Light 360° 0200GRBDP1 0200GRBW01 2/2 037512V25W/25W
* 12 Volt Only
** For Use on Vessels Under Sail Alone.
For Pipe Mounting Bracket options, see Figs. 0222 & 0224 below.
Halyard Mount 2 Mile/3 Mile Certified (USCG 2nm/3nm)
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Black or White Polymer
Stainless Steel Mounting Hardware
Dimensions: Height: 7-1/8”, O.D.: 3-5/16”
Screw Size: No mounting screws required Fig. 0200SRH
Voltage: 12 or 24V (Bulb Included)
Wattage: 25 watt or 10 watt
Amperage: 25 watt 10 watts
12V: 2.08 amps 12V: .83 amps
24V: 1.04 amps 24V: .42 amps

Visibility Black White* Visibility Replacement
Halyard Mount Arc Retail Pkg. Std. Pkg. Miles Bulb
White All-Round Light 360° 0200SWHDP1 0200SWHW01 2 037512V10W
Red All-Round Light 360° 0200SRHDP1 0200SRHW01 2 037512V25W
Green All-Round Light 360° 0200SGHDP1 0200SGHW01 2 037512V25W
* 12 Volt Only

Pipe Mounting Brackets For Use on All 0200/0210 Series Base Mount Lights
Material: Black or White Polymer
Includes Screws and Soft Mounting Gasket
for Mounting Bracket to Light
Dimensions: Tapped Pipe Size: 1/2”,
O.D. Overall: 3-5/16”

Mount Black Retail Pkg. White Retail Pkg.
Flat 0222DP0BLK 0222DP0WHT
Cone 0224DP0BLK 0224DP0WHT Fig. 0224
Fig. 0222 - BLK Fig. 0224 - WHT Shown Mounted
Spare Parts Information for pages 26 and 27
Lens assembly part numbers are determined by replacing the last three digits of the Catalog Number with the letters “LNS” (example: 0200BT0LNS, for a
Bi-Color Top Mount Lens Assembly). Replacement Bulb Sockets: (single and lower for double) Cat. No. 0093, (upper for double), Cat No. 0095.

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 27
