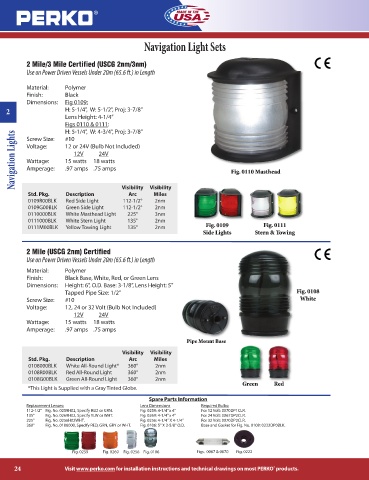

Page 24 - Perko

Navigation Light Sets

2 Mile/3 Mile Certified (USCG 2nm/3nm)
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Polymer
Finish: Black
Dimensions: Fig 0109:
2 H: 5-1/4”, W: 5-1/2”, Proj: 3-7/8”
Lens Height: 4-1/4”
Figs 0110 & 0111:
H: 5-1/4”, W: 4-3/4”, Proj: 3-7/8”
Navigation Lights Voltage: 12 or 24V (Bulb Not Included) Fig. 0110 Masthead
Screw Size: #10

24V
12V
Wattage: 15 watts 18 watts
Amperage: .97 amps .75 amps

Std. Pkg. Visibility Visibility
Description Arc Miles
0109R00BLK Red Side Light 112-1/2° 2nm
0109G00BLK Green Side Light 112-1/2° 2nm
0110000BLK White Masthead Light 225° 3nm
0111000BLK White Stern Light 135° 2nm
0111M00BLK Yellow Towing Light 135° 2nm Fig. 0109 Fig. 0111
Side Lights Stern & Towing

2 Mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Polymer
Finish: Black Base, White, Red, or Green Lens
Dimensions: Height: 6”, O.D. Base: 3-1/8”, Lens Height: 5”
Tapped Pipe Size: 1/2” Fig. 0108
Screw Size: #10 White
Voltage: 12, 24 or 32 Volt (Bulb Not Included)
12V 24V
Wattage: 15 watts 18 watts
Amperage: .97 amps .75 amps
Pipe Mount Base

Visibility Visibility
Std. Pkg. Description Arc Miles
0108000BLK White All-Round Light* 360° 2nm
0108R00BLK Red All-Round Light 360° 2nm
0108G00BLK Green All-Round Light 360° 2nm
Green Red
*This Light is Supplied with a Gray Tinted Globe.
Spare Parts Information
Replacement Lenses: Lens Dimensions Required Bulbs:
112-1/2° Fig. No. 0259H02, Specify RED or GRN. Fig. 0259: 4-1/4” x 4” For 12 Volt: 0070DP1CLR.
135° Fig. No. 0269H02, Specify YLW or WHT. Fig. 0269: 4-1/4” x 4” For 24 Volt: 0067DP2CLR.
225° Fig. No. 0256H02WHT. Fig. 0256: 4-1/4" X 4-1/4" For 32 Volt: 0070DP2CLR.
360° Fig. No. 0106000, Specify RED, GRN, GRY or WHT. Fig. 0106: 5" X 3-5/8" O.D. Base and Gasket for Fig. No. 0108: 0222DP0BLK.

Fig. 0259 Fig. 0269 Fig. 0256 Fig. 0106 Figs. 0067 & 0070 Fig. 0222

24 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
