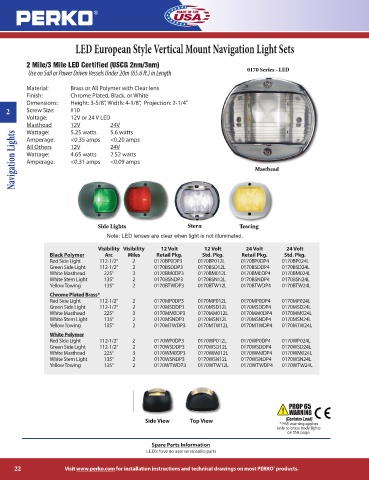

LED European Style Vertical Mount Navigation Light Sets

2 Mile/3 Mile LED Certified (USCG 2nm/3nm)
0170 Series - LED
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Brass or All Polymer with Clear lens
Finish: Chrome Plated, Black, or White
Dimensions: Height: 3-5/8”, Width: 4-1/8”, Projection: 2-1/4”
2 Screw Size: #10
Voltage: 12V or 24 V LED
Masthead 12V 24V
5.6 watts
Navigation Lights All Others 12V 24V Masthead
Wattage: 5.25 watts
Amperage: <0.35 amps
<0.20 amps
2.52 watts
Wattage: 4.65 watts
Amperage: <0.31 amps
<0.09 amps

Side Lights Stern Towing
Note: LED lenses are clear when light is not illuminated.
Visibility Visibility 12 Volt 12 Volt 24 Volt 24 Volt
Black Polymer Arc Miles Retail Pkg. Std. Pkg. Retail Pkg. Std. Pkg.
Red Side Light 112-1/2° 2 0170BP0DP3 0170BP012L 0170BP0DP4 0170BP024L
Green Side Light 112-1/2° 2 0170BSDDP3 0170BSD12L 0170BSDDP4 0170BSD24L
White Masthead 225° 3 0170BM0DP3 0170BM012L 0170BM0DP4 0170BM024L
White Stern Light 135° 2 0170BSNDP3 0170BSN12L 0170BSNDP4 0170BSN24L
Yellow Towing 135° 2 0170BTWDP3 0170BTW12L 0170BTWDP4 0170BTW24L
Chrome Plated Brass*
Red Side Light 112-1/2° 2 0170MP0DP3 0170MP012L 0170MP0DP4 0170MP024L
Green Side Light 112-1/2° 2 0170MSDDP3 0170MSD12L 0170MSDDP4 0170MSD24L
White Masthead 225° 3 0170MM0DP3 0170MM012L 0170MM0DP4 0170MM024L
White Stern Light 135° 2 0170MSNDP3 0170MSN12L 0170MSNDP4 0170MSN24L
Yellow Towing 135° 2 0170MTWDP3 0170MTW12L 0170MTWDP4 0170MTW24L
White Polymer
Red Side Light 112-1/2° 2 0170WP0DP3 0170WP012L 0170WP0DP4 0170WP024L
Green Side Light 112-1/2° 2 0170WSDDP3 0170WSD12L 0170WSDDP4 0170WSD24L
White Masthead 225° 3 0170WM0DP3 0170WM012L 0170WM0DP4 0170WM024L
White Stern Light 135° 2 0170WSNDP3 0170WSN12L 0170WSNDP4 0170WSN24L
Yellow Towing 135° 2 0170WTWDP3 0170WTW12L 0170WTWDP4 0170WTW24L

Side View Top View
* P65 warning applies
only to brass body lights
on this page.
Spare Parts Information
L.E.D.’s have no user serviceable parts
