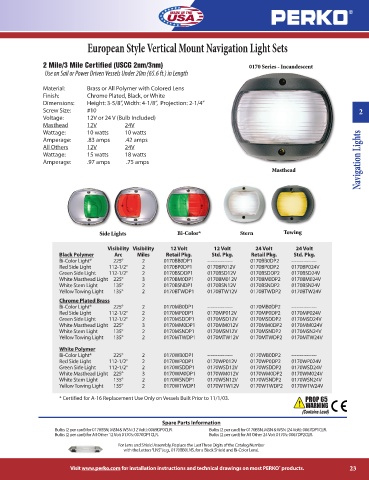

European Style Vertical Mount Navigation Light Sets

2 Mile/3 Mile Certified (USCG 2nm/3nm) 0170 Series - Incandescent
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Brass or All Polymer with Colored Lens
Finish: Chrome Plated, Black, or White
Dimensions: Height: 3-5/8”, Width: 4-1/8”, Projection: 2-1/4”
Screw Size: #10 2
Voltage: 12V or 24 V (Bulb Included)
Masthead 12V 24V
Navigation Lights
Wattage: 10 watts 10 watts
Amperage: .83 amps .42 amps
All Others 12V 24V
Wattage: 15 watts 18 watts
Amperage: .97 amps .75 amps
Masthead

Side Lights Bi-Color* Stern Towing

Visibility Visibility 12 Volt 12 Volt 24 Volt 24 Volt
Black Polymer Arc Miles Retail Pkg. Std. Pkg. Retail Pkg. Std. Pkg.
Bi-Color Light* 225° 2 0170BB0DP1 --------------- 0170BB0DP2 ---------------
Red Side Light 112-1/2° 2 0170BP0DP1 0170BP012V 0170BP0DP2 0170BP024V
Green Side Light 112-1/2° 2 0170BSDDP1 0170BSD12V 0170BSDDP2 0170BSD24V
White Masthead Light 225° 3 0170BM0DP1 0170BM012V 0170BM0DP2 0170BM024V
White Stern Light 135° 2 0170BSNDP1 0170BSN12V 0170BSNDP2 0170BSN24V
Yellow Towing Light 135° 2 0170BTWDP1 0170BTW12V 0170BTWDP2 0170BTW24V
Chrome Plated Brass
Bi-Color Light* 225° 2 0170MB0DP1 --------------- 0170MB0DP2 ---------------
Red Side Light 112-1/2° 2 0170MP0DP1 0170MP012V 0170MP0DP2 0170MP024V
Green Side Light 112-1/2° 2 0170MSDDP1 0170MSD12V 0170MSDDP2 0170MSD24V
White Masthead Light 225° 3 0170MM0DP1 0170MM012V 0170MM0DP2 0170MM024V
White Stern Light 135° 2 0170MSNDP1 0170MSN12V 0170MSNDP2 0170MSN24V
Yellow Towing Light 135° 2 0170MTWDP1 0170MTW12V 0170MTWDP2 0170MTW24V

White Polymer
Bi-Color Light* 225° 2 0170WB0DP1 --------------- 0170WB0DP2 ---------------
Red Side Light 112-1/2° 2 0170WP0DP1 0170WP012V 0170WP0DP2 0170WP024V
Green Side Light 112-1/2° 2 0170WSDDP1 0170WSD12V 0170WSDDP2 0170WSD24V
White Masthead Light 225° 3 0170WM0DP1 0170WM012V 0170WM0DP2 0170WM024V
White Stern Light 135° 2 0170WSNDP1 0170WSN12V 0170WSNDP2 0170WSN24V
Yellow Towing Light 135° 2 0170WTWDP1 0170WTW12V 0170WTWDP2 0170WTW24V

* Certified for A-16 Replacement Use Only on Vessels Built Prior to 11/1/03.

Spare Parts Information
Bulbs (2 per card) for 0170BSN, MSN & WSN (12 Volt): 0069DP0CLR. Bulbs (2 per card) for 0170BSN, MSN & WSN (24 Volt): 0067DP1CLR.
Bulbs (2 per card) for All Other 12 Volt 0170’s: 0070DP1CLR. Bulbs (2 per card) for All Other 24 Volt 0170’s: 0067DP2CLR.

For Lens and Shield Assembly, Replace the Last Three Digits of the Catalog Number
with the Letters “LNS” (e.g., 0170BB0LNS, for a Black Shield and Bi-Color Lens).

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 23
®
