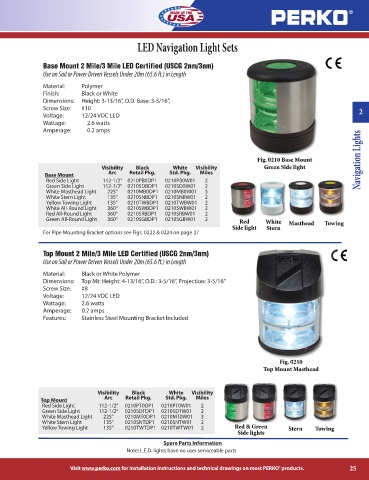

LED Navigation Light Sets

Base Mount 2 Mile/3 Mile LED Certified (USCG 2nm/3nm)
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Polymer
Finish: Black or White
Dimensions: Height: 3-13/16”, O.D. Base: 3-5/16”,
Screw Size: #10 2
Voltage: 12/24 VDC LED
Wattage: 2.6 watts
Amperage: 0.2 amps
Navigation Lights

Fig. 0210 Base Mount
Visibility Black White Visibility Green Side light
Arc Retail Pkg. Std. Pkg. Miles
Base Mount
Red Side Light 112-1/2° 0210PB0DP1 0210PB0W01 2
Green Side Light 112-1/2° 0210SDBDP1 0210SDBW01 2
White Masthead Light 225° 0210MB0DP1 0210MB0W01 3
White Stern Light 135° 0210SNBDP1 0210SNBW01 2
Yellow Towing Light 135° 0210TWBDP1 0210TWBW01 2
White All-Round Light 360° 0210SWBDP1 0210SWBW01 2
Red All-Round Light 360° 0210SRBDP1 0210SRBW01 2
Green All-Round Light 360° 0210SGBDP1 0210SGBW01 2
Red White Masthead Towing
Side light Stern
For Pipe Mounting Bracket options see Figs. 0222 & 0224 on page 27

Top Mount 2 Mile/3 Mile LED Certified (USCG 2nm/3nm)
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Black or White Polymer
Dimensions: Top Mt: Height: 4-13/16”, O.D.: 3-5/16”, Projection: 3-5/16”
Screw Size: #8
Voltage: 12/24 VDC LED
Wattage: 2.6 watts
Amperage: 0.2 amps
Features: Stainless Steel Mounting Bracket Included

Fig. 0210
Top Mount Masthead

Visibility Black White Visibility
Arc Retail Pkg. Std. Pkg. Miles
Top Mount
Red Side Light 112-1/2° 0210PT0DP1 0210PT0W01 2
Green Side Light 112-1/2° 0210SDTDP1 0210SDTW01 2
White Masthead Light 225° 0210MT0DP1 0210MT0W01 3
White Stern Light 135° 0210SNTDP1 0210SNTW01 2
Yellow Towing Light 135° 0210TWTDP1 0210TWTW01 2 Red & Green Stern Towing
Side lights
Spare Parts Information
Note: L.E.D. lights have no user serviceable parts
