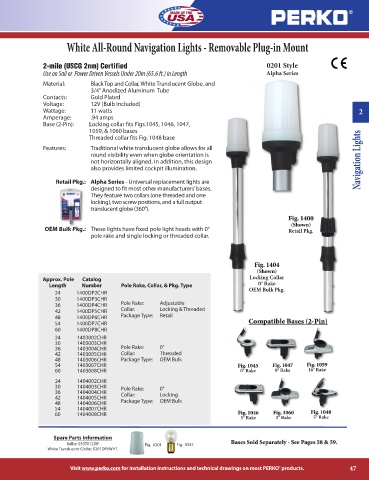

P. 47

White All-Round Navigation Lights - Removable Plug-in Mount


               2-mile (USCG 2nm) Certified                                              0201 Style
               Use on Sail or  Power Driven Vessels Under 20m (65.6 ft.) in Length      Alpha Series

               Material:                   Black Top and Collar, White Translucent Globe, and
                                                   3/4” Anodized Aluminum Tube
               Contacts:                  Gold Plated
               Voltage:                    12V (Bulb Included)
               Wattage:                  11 watts                                                                     2
               Amperage:               .94 amps
               Base (2-Pin):            Locking collar fits Figs.1045, 1046, 1047,
                                                  1059, & 1060 bases
                                                  Threaded collar fits Fig. 1048 base
               Features:                   Traditional white translucent globe allows for all
                               round visibility even when globe orientation is
                               not horizontally aligned. In addition, this design                                      Navigation Lights
                               also provides limited cockpit illumination.

                         Retail Pkg.:    Alpha Series - Universal replacement lights are
                               designed to fit most other manufacturers’ bases.
                               They feature two collars (one threaded and one
                               locking), two screw positions, and a full output
                               translucent globe (360°).
                                                                                               Fig. 1400
                                                                                                (Shown)
                OEM Bulk Pkg.:    These lights have fixed pole light heads with 0°             Retail Pkg.
                               pole rake and single locking or threaded collar.




                                                                                    Fig. 1404
                                                                                     (Shown)
               Approx. Pole       Catalog                                          Locking Collar
                 Length              Number                 Pole Rake, Collar, & Pkg. Type  0° Rake
                                                                                  OEM Bulk Pkg.
                   24             1400DP2CHR
                   30             1400DP3CHR
                   36             1400DP4CHR  Pole Rake:  Adjustable
                   42             1400DP5CHR  Collar:  Locking & Threaded
                   48             1400DP6CHR  Package Type:  Retail
                   54             1400DP7CHR                                      Compatible Bases (2-Pin)
                   60             1400DP8CHR
                   24              1403002CHR
                   30              1403003CHR
                   36              1403004CHR  Pole Rake:  0°
                   42              1403005CHR  Collar:  Threaded
                   48              1403006CHR  Package Type:  OEM Bulk
                   54              1403007CHR                                  Fig. 1045  Fig. 1047  Fig. 1059
                   60              1403008CHR                                   0° Rake    0° Rake    16° Rake
                   24              1404002CHR
                   30              1404003CHR  Pole Rake:  0°
                   36              1404004CHR
                   42              1404005CHR  Collar:  Locking
                   48              1404006CHR  Package Type:  OEM Bulk
                   54              1404007CHR
                   60              1404008CHR                                  Fig. 1046  Fig. 1060    Fig. 1048
                                                                                5° Rake    5° Rake     5° Rake


                   Spare Parts Information
                       Bulbs: 0337012DP.        Fig.  0201  Fig.  0337       Bases Sold Separately - See Pages 58 & 59.
                 White Translucent Globe: 0201DP0WHT.


                        Visit www.perko.com for installation instructions and technical drawings on most PERKO products.  47
                                                                                            ®
