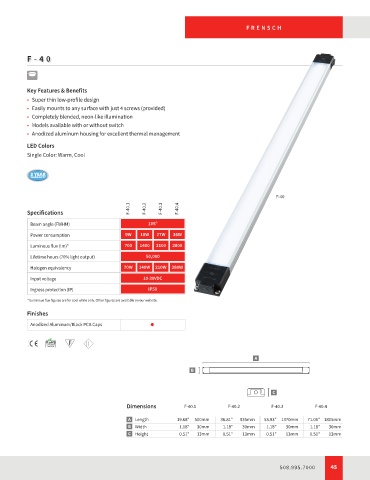

Page 45 - Imtra_lighting
P. 45
FRENSCH
F-40
Key Features & Benefits
• Super thin low-profile design
• Easily mounts to any surface with just 4 screws (provided)
• Completely blended, neon-like illumination
• Models available with or without switch
• Anodized aluminum housing for excellent thermal management
LED Colors
Single Color: Warm, Cool
F-40
F-40.1 F-40.2 F-40.3 F-40.4
Specifications
Beam angle (FWHM) 105 O
27W
Power consumption 9W 18W 4.7W 36W
Luminous flux (lm)* 700 1400 2100 2800
Lifetime hours (70% light output) 50,000
Halogen equivalency 70W 140W 210W 280W
Input voltage 10-30VDC
Ingress protection (IP) IP50
* Luminous flux figures are for cool white only. Other figures are available on our website.
Finishes
•
Anodized Aluminum/Black PCB Caps
A
B
C
Dimensions F-40.1 F-40.2 F-40.3 F-40.4
A Length 19.68" 500mm 36.81" 935mm 53.93" 1370mm 71.06" 1805mm
B Width 1.18" 30mm 1.18" 30mm 1.18" 30mm 1.18" 30mm
C Height 0.51" 13mm 0.51" 13mm 0.51" 13mm 0.51" 13mm
508.995.7000 45
