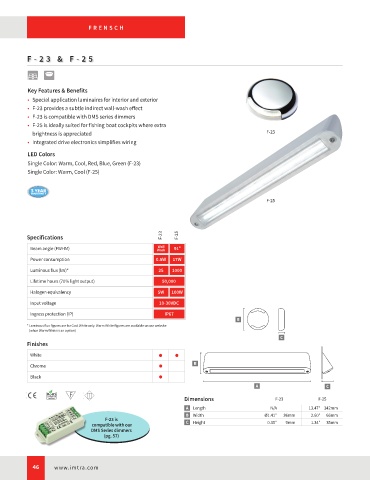

Page 46 - Imtra_lighting

FRENSCH

F-23 & F-25

Key Features & Benefits
• Special application luminaires for interior and exterior
• F-23 provides a subtle indirect wall-wash effect
• F-23 is compatible with DMS series dimmers
• F-25 is ideally suited for fishing boat cockpits where extra
brightness is appreciated F-23
• Integrated drive electronics simplifies wiring
LED Colors
Single Color: Warm, Cool, Red, Blue, Green (F-23)
Single Color: Warm, Cool (F-25)

F-25

Specifications F-23 F-25
Wall
Beam angle (FWHM) Wash 91 O
Power consumption 0.5W 17W
Luminous flux (lm)* 25 1000
Lifetime hours (70% light output) 50,000

Halogen equivalency 5W 100W
Input voltage 10-30VDC
Ingress protection (IP) IP67
B
* Luminous flux figures are for Cool White only. Warm White figures are available on our website
(when Warm White is an option)
C
Finishes
• •
White
• B
Chrome
•
Black
A C

Dimensions F-23 F-25
A Length N/A 13.47" 342mm
B Width Ø1.41" 36mm 2.60" 66mm
F-23 is
compatible with our C Height 0.35" 9mm 1.34" 35mm
DMS Series dimmers
(pg. 57)

46 www.imtra.com
