FRENSCH

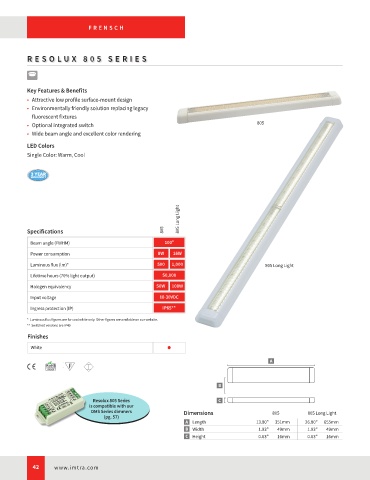

RESOL U X 805 SERIES
Key Features & Benefits
• Attractive low profile surface-mount design
• Environmentally friendly solution replacing legacy
fluorescent fixtures
• Optional integrated switch 805
• Wide beam angle and excellent color rendering
LED Colors
Single Color: Warm, Cool
805 Long Light
Specifications 805
Beam angle (FWHM) 100 O
8W
Power consumption 4.7W 16W
Luminous flux (lm)* 500 1,000 805 Long Light
Lifetime hours (70% light output) 50,000
Halogen equivalency 50W 100W
Input voltage 10-30VDC
Ingress protection (IP) IP65**
* Luminous flux figures are for cool white only. Other figures are available on our website.
** Switched versions are IP40
Finishes
•
White
A
B
Resolux 805 Series C
is compatible with our
DMS Series dimmers Dimensions 805 805 Long Light
(pg. 57)
A Length 13.80" 351mm 26.80" 655mm
B Width 1.93" 49mm 1.93" 49mm
C Height 0.63" 16mm 0.63" 16mm
