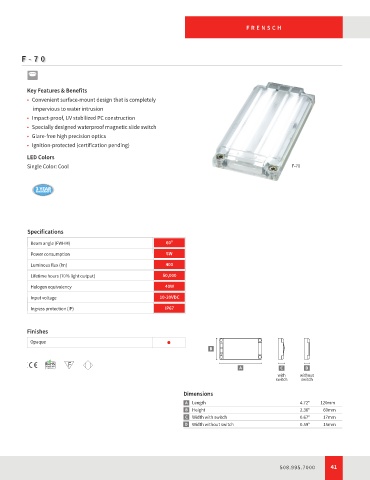

Page 41 - Imtra_lighting
P. 41
FRENSCH
F-70
Key Features & Benefits
• Convenient surface-mount design that is completely
impervious to water intrusion
• Impact-proof, UV stabilized PC construction
• Specially designed waterproof magnetic slide switch
• Glare-free high precision optics
• Ignition-protected (certification pending)
LED Colors
Single Color: Cool F-70
Specifications
Beam angle (FWHM) 60 O
Power consumption 5W
Luminous flux (lm) 400
Lifetime hours (70% light output) 50,000
Halogen equivalency 40W
Input voltage 10-30VDC
Ingress protection (IP) IP67
Finishes F-70
•
Opaque
B
A C C D
with without
switch switch
Dimensions
A Length 4.72" 120mm
B Height 2.36" 60mm
C Width with switch 0.67” 17mm
D Width without switch 0.59” 15mm
508.995.7000 41
