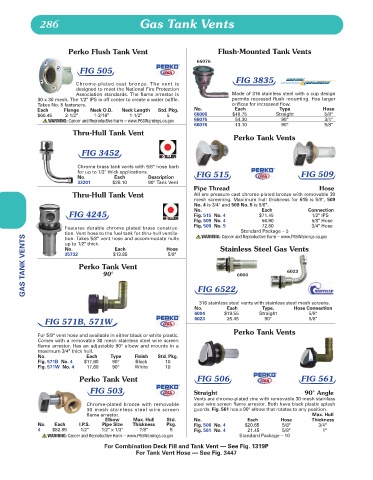

286 Gas Tank Vents

Perko Flush Tank Vent Flush-Mounted Tank Vents

66076
FIG 505
FIG 3835
Chrome-plated cast bronze. The vent is
designed to meet the National Fire Protection
Association standards. The flame arrestor is Made of 316 stainless steel with a cup design
30 x 30 mesh. The 1/2" IPS is off center to create a water baffle. permits recessed flush mounting. Has larger
Takes No. 8 fasteners. orifices for increased flow.
Each Flange Neck O.D. Neck Length Std. Pkg. No. Each Type Hose
$60.45 2-1/2" 1-3/16" 1-1/2" 5 66006 $40.75 Straight 5/8"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 66075 54.30 90° 3/4"
66076 43.10 90° 5/8"
Thru-Hull Tank Vent
Perko Tank Vents

FIG 3452

Chrome brass tank vents with 5/8" hose barb
for up to 1/2" thick applications. FIG 515 FIG 509
No. Each Description
33201 $25.10 90° Tank Vent
Pipe Thread Hose
Thru-Hull Tank Vent All are pressure cast chrome-plated bronze with removable 30
mesh screening. Maximum hull thickness for 515 is 5/8", 509
No. 4 is 3/4" and 509 No. 5 is 5/8".
No. Each Connection
FIG 4245 Fig. 515 No. 4 $71.45 1/2" IPS
Fig. 509 No. 4 56.90 5/8" Hose
Fig. 509 No. 5 72.80 3/4" Hose
Features durable chrome plated brass construc-
Standard Package – 5
tion. Vent hose to the fuel tank for thru-hull ventila- WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
GAS TANK VENTS 35732 Perko Tank Vent 5/8" 6004 6023
tion. Takes 5/8" vent hose and accommodate hulls
up to 1/2" thick.
Stainless Steel Gas Vents
Hose
Each
No.
$13.85
90°
FIG 6522

316 stainless steel vents with stainless steel mesh screens.
No. Each Type. Hose Connection
6004 $19.55 Straight 5/8"
6023 25.45 90° 5/8"
FIG 571B, 571W
Perko Tank Vents
For 5/8" vent hose and available in either black or white plastic.
Comes with a removable 30 mesh stainless steel wire screen
flame arrestor. Has an adjustable 90° elbow and mounts in a
maximum 3/4" thick hull.
No. Each Type Finish Std. Pkg.
Fig. 571B No. 4 $17.60 90° Black 10
Fig. 571W No. 4 17.60 90° White 10
Perko Tank Vent FIG 506 FIG 561

FIG 503 Straight 90° Angle
Vents are chrome-plated zinc with removable 30 mesh stainless
Chrome-plated bronze with removable steel wire screen flame arrestor. Both have black plastic splash
30 mesh stainless steel wire screen guards. Fig. 561 has a 90° elbow that rotates to any position.
flame arrestor. Max. Hull
Elbow Max. Hull Std. No. Each Hose Thickness
No. Each I.P.S. Pipe Size Thickness Pkg. Fig. 506 No. 4 $20.65 5/8" 3/4"
4 $82.85 1/2" 1/2" x 1/2" 7/8" 5 Fig. 561 No. 4 21.45 5/8" 1"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Standard Package – 10
For Combination Deck Fill and Tank Vent — See Fig. 1319P
For Tank Vent Hose — See Fig. 3447
