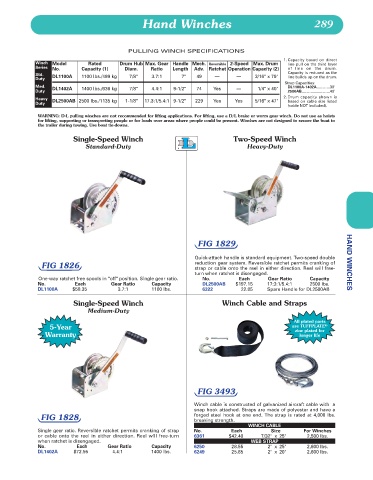

Hand Winches 289

PULLING WINCH SPECIFICATIONS
1. Capacity based on direct
Winch Model Rated Drum Hub Max. Gear Handle Mech. Reversible 2-Speed Max. Drum line pull on the third layer
Series No. Capacity (1) Diam. Ratio Length Adv. Ratchet Operation Capacity (2) of line on the drum.
Capacity is reduced as the
Std.
Duty DL1100A 1100 lbs./499 kg 7/8" 3.7:1 7" 49 — — 3/16" x 79' line builds up on the drum.
Strap Capacities:
Med. DL1402A 1400 lbs./636 kg 7/8" 4.4:1 9-1/2" 74 Yes — 1/4" x 40' DL1100A-1402A............30'
Duty 2500AB..........................40'
2. Drum capacity shown is
Heavy DL2500AB 2500 lbs./1135 kg 1-1/8" 17.3:1/5.4:1 9-1/2" 229 Yes Yes 5/16" x 47' based on cable size listed
Duty
(cable NOT included).
WARNING: D-L pulling winches are not recommended for lifting applications. For lifting, use a D/L brake or worm gear winch. Do not use as hoists
for lifting, supporting or transporting people or for loads over areas where people could be present. Winches are not designed to secure the boat to
the trailer during towing. Use boat tie-downs.
Single-Speed Winch Two-Speed Winch
Standard-Duty Heavy-Duty

FIG 1829

Quick-attach handle is standard equipment. Two-speed double
FIG 1826 reduction gear system. Reversible ratchet permits cranking of HAND WINCHES
strap or cable onto the reel in either direction. Reel will free-
turn when ratchet is disengaged.
One-way ratchet free spools in "off" position. Single gear ratio. No. Each Gear Ratio Capacity
No. Each Gear Ratio Capacity DL2500AB $197.15 17:3:1/5.4:1 2500 lbs.
DL1100A $58.35 3.7:1 1100 lbs. 6322 22.85 Spare Handle for DL2500AB
Single-Speed Winch Winch Cable and Straps
Medium-Duty

All plated parts
5-Year are TUFFPLATE ®
zinc plated for
Warranty longer life

FIG 3493

Winch cable is constructed of galvanized aircraft cable with a
snap hook attached. Straps are made of polyester and have a
FIG 1828 forged steel hook at one end. The strap is rated at 4,000 lbs.
breaking strength.
WINCH CABLE
Single gear ratio. Reversible ratchet permits cranking of strap No. Each Size For Winches
or cable onto the reel in either direction. Reel will free-turn 6361 $42.40 7/32" x 25' 2,500 lbs.
when ratchet is disengaged. WEB STRAP
No. Each Gear Ratio Capacity 6250 28.55 2" x 25' 2,600 lbs.
DL1402A $72.55 4.4:1 1400 lbs. 6249 25.85 2" x 20' 2,600 lbs.
