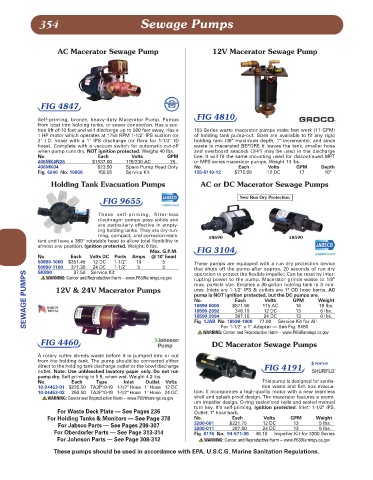

354 Sewage Pumps

AC Macerator Sewage Pump 12V Macerator Sewage Pump

FIG 4847
FIG 4810
Self-priming, bronze, heavy-duty Macerator Pump. Pumps
from boat into holding tanks, or sewer connection. Has a suc-
tion lift of 10 feet and will discharge up to 500 feet away. Has a 155 Series waste macerator pumps make fast work (17 GPM)
1 HP motor which operates at 1750 RPM 1-1/2" IPS suction (or of holding tank pump-out. Sizes are available to fit any rigid
2" I.D. hose) with a 1" IPS discharge (or flare for 1-1/2" ID holding tank (36" maximum depth, 1" increments), and since
hose). Complete with a vacuum switch for automatic cut-off waste is macerated BEFORE it leaves the tank, smaller hose
when pump runs dry. NOT ignition protected. Weighs 40 lbs. and overboard seacock (3/4") may be used in the discharge
No. Each Volts GPM line. It will fit the same mounting used for discontinued MPT
406MK4N26 $1537.00 115/230 AC 25 or MPS series macerator pumps. Weight 13 lbs.
406MK04 823.50 Spare Pump Head Only No. Each Volts GPM Depth
Fig. 6240 No. 10956 158.05 Service Kit 155-6110-12 $775.88 12 DC 17 10"
Holding Tank Evacuation Pumps AC or DC Macerator Sewage Pumps

New Run Dry Protection
FIG 9655

These self-priming, filter-less
diaphragm pumps pass solids and
are particularly effective in empty-
ing holding tanks. They are dry-run-
ning, compact, and corrosion-resis- 18690 18590
tant and have a 360° rotatable head to allow total flexibility in
almost any position. Ignition protected. Weight: 6 lbs.
Max. G.P. M. FIG 3104
No. Each Volts DC Ports Amps @ 10' head
50890-1000 $351.45 12 DC 1-1/2" 10 5 These pumps are equipped with a run dry protection device
24 DC
50890-1100 371.30 Service Kit 1-1/2" 5 5 that shuts off the pump after approx. 20 seconds of run dry
SEWAGE PUMPS 12V & 24V Macerator Pumps max. particle size. Empties a 30-gallon holding tank in 3 min-
37.50
SK890
operation to protect the flexible impeller. Can be reset by inter-
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
rupting power to the pump. Macerator grinds waste to 1/8"
utes. Inlets are 1-1/2" IPS & outlets are 1" OD hose barbs. AC
pump is NOT ignition protected, but the DC pumps are.
Weight
Each
No.
GPM
Volts
$871.90
18690-0000
16
19 lbs.
115 AC
13
18590-2092
346.15
12 DC
6 lbs.
6 lbs.
24 DC
367.10
13
18590-2094
Fig. 1JAB No. 18598-1000
77.00
Service Kit for All
For 1-1/2" x 1" Adapter — See Fig. 8480
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
FIG 4460 DC Macerator Sewage Pumps
A rotary cutter shreds waste before it is pumped into or out
from the holding tank. The pump should be connected either
direct to the holding tank discharge outlet or the bowl discharge FIG 4191
outlet. Note: Use unbleached lavatory paper only. Do not run
pump dry. Self priming to 5 ft. when wet. Weight 4.2 lbs.
No. Each Type Inlet Outlet Volts This pump is designed for sanita-
10-24453-01 $220.50 TA3P10-19 1-1/2" Hose 1" Hose 12 DC tion waste and fish box evacua-
10-24453-02 250.50 TA3P10-19 1-1/2" Hose 1" Hose 24 DC tion. It incorporates a high-quality motor with a new seamless
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov shell and splash-proof design. The macerator features a premi-
um impeller design, O-ring sealed end bells and sealed manual
turn key. It's self-priming, ignition protected. Inlet: 1-1/2" IPS,
For Waste Deck Plate — See Pages 236 Outlet: 1" hose barb.
For Holding Tanks & Monitors — See Page 378 No. Each Volts GPM Weight
For Jabsco Parts — See Pages 298-307 3200-001 $221.75 12 DC 13 5 lbs.
3200-011 287.60 24 DC 13 5 lbs.
For Oberdorfer Parts — See Page 313-314 Fig. 6176 No. 94-571-00 46.10 Impeller Kit for 3200 Series
For Johnson Parts — See Page 308-312 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
These pumps should be used in accordance with EPA, U.S.C.G. Marine Sanitation Regulations.
