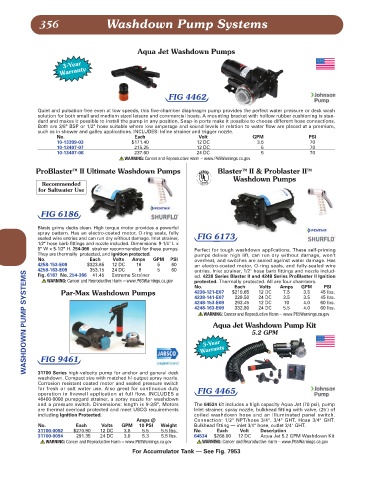

356 Washdown Pump Systems

Aqua Jet Washdown Pumps

3-Year
Warranty

FIG 4462

Quiet and pulsation-free even at low speeds, this five-chamber diaphragm pump provides the perfect water pressure or deck wash
solution for both small and medium sized leisure and commercial boats. A mounting bracket with hollow rubber cushioning is stan-
dard and makes it possible to install the pump in any position. Snap-in ports make it possible to choose different hose connections.
Both are 3/8" BSP or 1/2" hose suitable where low amperage and sound levels in relation to water flow are placed at a premium,
such as in shower and galley applications. INCLUDES: Inline strainer and trigger nozzle.
No. Each Volt GPM PSI
10-13399-03 $171.40 12 DC 3.5 70
10-13407-07 215.25 12 DC 5 70
10-13407-08 237.60 24 DC 5 70
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

ProBlaster™ II Ultimate Washdown Pumps Blaster™ II & Problaster II™
Washdown Pumps
Recommended
for Saltwater Use

FIG 6186

Blasts grimy decks clean. High torque motor provides a powerful
spray pattern. Has an electro-coated motor, O-ring seals, fully
sealed wire entries and can run dry without damage. Inlet strainer, FIG 6173
1/2" hose barb fittings and nozzle included. Dimensions: 9-1/4" L x
5" W x 5-1/2" H. 254-366 strainer recommended for these pumps. Perfect for tough washdown applications. These self-priming
They are thermally protected, and ignition protected. pumps deliver high lift, can run dry without damage, won't
No. Each Volts Amps GPM PSI overheat, and switches are sealed against water damage. Has
4258-153-E09 $323.65 12 DC 16 5 60 an electro-coated motor, O-ring seals, and fully-sealed wire
4258-163-E09 353.15 24 DC 8 5 60 entries. Inlet strainer, 1/2" hose barb fittings and nozzle includ-
WASHDOWN PUMP SYSTEMS
Fig. 6187 No. 254-366 41.45 Extreme Strainer ed. 4238 Series Blaster II and 4248 Series ProBlaster II Ignition
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov protected. Thermally protected. All are four chambers.
No. Each Volts Amps GPM PSI
Par-Max Washdown Pumps 4238-121-E07 $210.65 12 DC 7.5 3.5 45 lbs.
4238-141-E07 229.50 24 DC 3.5 3.5 45 lbs.
4248-153-E09 293.45 12 DC 10 4.0 60 lbs.
4248-163-E09 332.80 24 DC 5.5 4.0 60 lbs.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Aqua Jet Washdown Pump Kit
5.2 GPM
3-Year
Warranty
FIG 9461

31700 Series high-velocity pump for anchor and general deck
washdown. Compact size with matched hi-output spray nozzle.
Corrosion resistant coated motor and sealed pressure switch
for fresh or salt water use. Also great for continuous duty FIG 4465
operation in livewell application at full flow. INCLUDES a
46400-0000 pumpgard strainer, a spray nozzle for washdown
and a pressure switch. Dimensions: length is 9-3/8", Motors The 64534 kit includes a high capacity Aqua Jet (70 psi), pump
are thermal overload protected and meet USCG requirements Inlet strainer, spray nozzle, bulkhead fitting with valve, (25') of
including Ignition Protected. coiled washdown hose and an illuminated panel switch.
Amps @ Connection: 1/2" NPT/hose 3/4". 3/4" GHT, Hose 3/4" GHT.
No. Each Volts GPM 10 PSI Weight Bulkhead fitting — inlet 3/4" hose, outlet 3/4" GHT.
31700-0092 $270.90 12 DC 3.8 5.5 5.5 lbs. No. Each Volt Description
31700-0094 291.35 24 DC 3.8 5.3 5.5 lbs. 64534 $268.00 12 DC Aqua Jet 5.2 GPM Washdown Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For Accumulator Tank — See Fig. 7953
