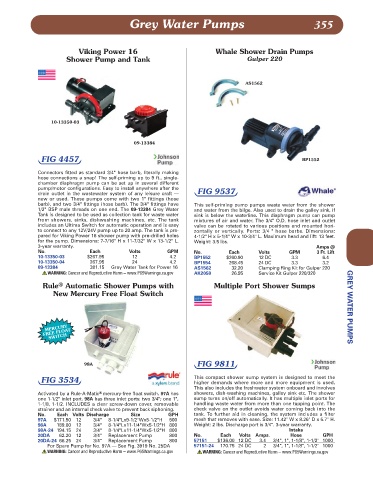

Page 356 - Lewis

Grey Water Pumps 355

Viking Power 16 Whale Shower Drain Pumps
Shower Pump and Tank Gulper 220

AS1562

10-13350-03

09-13384

FIG 4457 BP1552

Connectors fitted as standard 3/4" hose barb, literally making
hose connections a snap! The self-priming up to 9 ft., single-
chamber diaphragm pump can be set up in several different
pump/motor configurations. Easy to install anywhere after the
drain outlet in the wastewater system of any leisure craft — FIG 9537
new or used. These pumps come with two 1" fittings (hose
barb), and two 3/4" fittings (hose barb). The 3/4" fittings have This self-priming pump pumps waste water from the shower
1/2" BSP male threads on one end. The 09-13384 Grey Water and water from the bilge. Also used to drain the galley sink, if
Tank is designed to be used as collection tank for waste water sink is below the waterline. This diaphragm pump can pump
from showers, sinks, dishwashing machines, etc. The tank mixtures of air and water. The 3/4" O.D. hose inlet and outlet
includes an Ultima Switch for automatic operation and is easy valve can be rotated to various positions and mounted hori-
to connect to any 12V/24V pump up to 20 amp. The tank is pre- zontally or vertically. Ports: 3/4 " hose barbs. Dimensions:
pared for Viking Power 16 shower pump with pre-drilled holes 4-1/2" H x 5-1/4" W x 10-3/4" L. Maximum head and lift: 13 feet.
for the pump. Dimensions: 7-7/16" H x 11-7/32" W x 13-1/2" L. Weight: 3.5 lbs.
3-year warranty. Amps @
No. Each Volts GPM No. Each Volts GPM 3 Ft. Lift
10-13350-03 $267.95 12 4.2 BP1552 $260.90 12 DC 3.3 6.4
10-13350-04 267.95 24 4.2 BP1554 268.45 24 DC 3.3 3.2
09-13384 381.15 Grey Water Tank for Power 16 AS1562 32.20 Clamping Ring Kit for Gulper 220
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov AK2050 26.95 Service Kit Gulper 220/320

®
Rule Automatic Shower Pumps with Multiple Port Shower Sumps
New Mercury Free Float Switch GREY WATER PUMPS

MERCURY
FREE FLOAT
SWITCH

98A FIG 9811

FIG 3534 This compact shower sump system is designed to meet the
higher demands where more and more equipment is used.
This also includes the freshwater system onboard and involves
Activated by a Rule-A-Matic ® mercury-free float switch. 97A has showers, dish-washing machines, galley sink etc. The shower
one 1-1/2" inlet port. 98A has three inlet ports: two 3/4"; one 1", sump turns on/off automatically. It has multiple inlet ports for
1-1/8, 1-1/2. INCLUDES a clear screw-down cover, removable handling waste water from more than one tapping point. The
strainer and an internal check valve to prevent back siphoning. check valve on the outlet avoids water coming back into the
No. Each Volts Discharge Size GPH tank. To further aid in cleaning, the system includes a filter
97A $171.50 12 3/4" 8-1/4"Lx9-1/2"Wx5-1/2"H 500 mesh that removes with ease. Size: 11.42" W x 8.26" D x 5.7" H.
98A 189.80 12 3/4" 8-1/4"Lx11-1/4"Wx5-1/2"H 800 Weight: 2 lbs. Discharge port is 3/4". 3-year warranty.
98A-24 194.15 24 3/4" 8-1/4"Lx11-1/4"Wx5-1/2"H 800 Intake
20DA 62.20 12 3/4" Replacement Pump 800 No. Each Volts Amps. Hose GPH
20DA-24 66.25 24 3/4" Replacement Pump 800 57151 $136.00 12 DC 3.4 3/4", 1", 1-1/8", 1-1/2" 1000
For Spare Pump for No. 97A — See Fig. 3919 No. 25DA 57151-24 170.75 24 DC 2 3/4", 1", 1-1/8", 1-1/2" 1000
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
