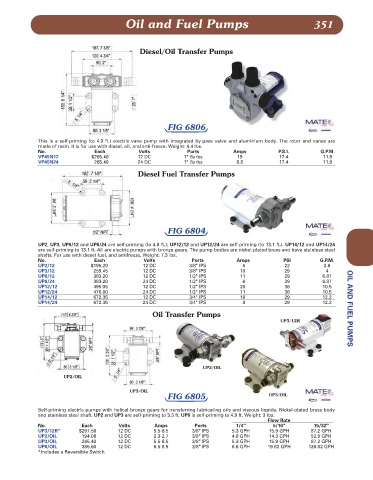

Oil and Fuel Pumps 351

Diesel/Oil Transfer Pumps

FIG 6806

This is a self-priming (to 4.9 ft.) electric vane pump with integrated by-pass valve and aluminium body. The rotor and vanes are
made of resin. It is for use with diesel, oil, and anti-freeze. Weight: 4.4 lbs.
No. Each Volts Ports Amps P.S.I. G.P.M.
VP45N12 $265.40 12 DC 1" Barbs 19 17.4 11.9
VP45N24 265.40 24 DC 1" Barbs 9.5 17.4 11.9
Diesel Fuel Transfer Pumps

FIG 6804

UP2, UP3, UP6/12 and UP6/24 are self-priming (to 4.9 ft.); UP12/12 and UP12/24 are self-priming (to 13.1 ft.). UP14/12 and UP14/24
are self-priming to 13.1 ft. All are electric pumps with bronze gears. The pump bodies are nickel-plated brass and have stainless steel
shafts. For use with diesel fuel, and antifreeze. Weight: 7.3 lbs.
No. Each Volts Ports Amps PSI G.P.M.
UP2/12 $195.20 12 DC 3/8" IPS 5 22 2.6
UP3/12 259.45 12 DC 3/8" IPS 10 29 4
UP6/12 383.20 12 DC 1/2" IPS 11 29 6.87
UP6/24 383.20 24 DC 1/2" IPS 6 29 6.87
UP12/12 495.05 12 DC 1/2" IPS 20 36 10.5
UP12/24 476.00 24 DC 1/2" IPS 11 36 10.5
UP14/12 672.35 12 DC 3/4" IPS 16 29 12.2
UP14/24 672.35 24 DC 3/4" IPS 8 29 12.2

Oil Transfer Pumps OIL AND FUEL PUMPS
UP3/12R

UP2/OIL
UP2/OIL

UP3/OIL
FIG 6805 UP3/OIL

Self-priming electric pumps with helical bronze gears for transferring lubricating oils and viscous liquids. Nickel-plated brass body
and stainless steel shaft. UP2 and UP3 are self-priming to 3.3 ft. UP6 is self-priming to 4.9 ft. Weight: 3 lbs.
Flow Rate
No. Each Volts Amps Ports 1/4" 5/16" 15/32"
UP3/12R* $297.50 12 DC 5.5-6.5 3/8" IPS 5.3 GPH 15.9 GPH 87.2 GPH
UP2/OIL 194.00 12 DC 2.3-2.7 3/8" IPS 4.8 GPH 14.3 GPH 52.9 GPH
UP3/OIL 265.40 12 DC 5.5-6.5 3/8" IPS 5.3 GPH 15.9 GPH 87.2 GPH
UP6/OIL 385.60 12 DC 6.5-8.5 3/8" IPS 6.6 GPH 19.82 GPH 126.82 GPH
*Includes a Reversible Switch
