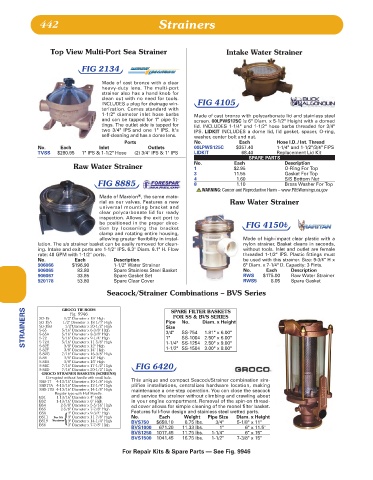

442 Strainers

Top View Multi-Port Sea Strainer Intake Water Strainer

FIG 2134

Made of cast bronze with a clear
heavy-duty lens. The multi-port
strainer also has a hand knob for
clean out with no need for tools.
INCLUDES a plug for drainage win- FIG 4105
terization. Comes standard with
1-1/2" diameter inlet hose barbs Made of cast bronze with polycarbonate lid and stainless steel
and can be tapped for 1" pipe fit- screen. 00LPWS125C is 6" Diam. x 5-1/2" Height with a domed
tings. The outlet side is tapped for lid. INCLUDES 1-1/4" and 1-1/2" hose barbs threaded for 3/4"
two 3/4" IPS and one 1" IPS. It's IPS. LIDKIT INCLUDES a dome lid, lid gasket, spacer, O-ring,
self-cleaning and has a dome lens. washer, center bolt and nut.
Ports No. Each Hose I.D./ Int. Thread
No. Each Inlet Outlets 00LPWS125C $357.40 1-1/4" and 1-1/2"/3/4" FIPS
TVSS $280.95 1" IPS & 1-1/2" Hose (2) 3/4" IPS & 1" IPS LIDKIT 68.40 Replacement Lid Kit
SPARE PARTS
No. Each Description
Raw Water Strainer 1 $2.95 O-Ring For Top
3 11.55 Gasket For Top
4 1.60 S/S Bottom Nut
FIG 8885 8 1.10 Brass Washer For Top
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Made of Marelon ® , the same mate-
rial as our valves. Features a new Raw Water Strainer
universal mounting bracket and
clear polycarbonate lid for ready
inspection. Allows the exit port to
be positioned in the proper direc- FIG 4150b
tion by loosening the bracket
clamp and rotating entire housing,
allowing greater flexibility in instal- Made of high-impact clear plastic with a
lation. The s/s strainer basket can be easily removed for clean- nylon strainer. Basket cleans in seconds,
ing. Intake and exit ports are 1-1/2" IPS. 6.3" Diam. 6.1" H. Flow without tools. Inlet and outlet are female
rate: 40 GPM with 1-1/2" ports. threaded 1-1/2" IPS. Plastic fittings must
No. Each Description be used with this strainer. Size: 9-3/4" H x
906066 $196.90 1-1/2" Water Strainer 6" Diam. x 7-1/4" D. Capacity: 3 Pints.
906065 83.80 Spare Stainless Steel Basket No. Each Description
906067 33.85 Spare Gasket Set RWS $175.00 Raw Water Strainer
920178 53.80 Spare Clear Cover RWS5 8.05 Spare Gasket
Seacock/Strainer Combinations – BVS Series

STRAINERS SD-15 5/16" Diameter x 6-3/8" High Pipe No. Diam. x Height
GROCO TIE RODS
SPARE FILTER BASKETS
Fig. 9946
FOR SS & BVS SERIES
1/2" Diameter x 15" High
1/2" Diameter x 18-1/4" High
SD-15A
1/2"Diameter x 20-1/2" High
SD-15B
Size
S-65
1.81" x 6.00"
3/4"
SS-754
S-65A
5/16" Diameter x 8-3/8" High
SS-1004 2.50" x 6.00"
1"
S-72
5/16" Diameter x 9-1/4" High
S-72A
3/8" Diameter x 12" High
S-82E
1-1/2" SS-1504 3.00" x 8.00"
3/8" Diameter x 14" High
S-82F 5/16" Diameter x 11-5/8" High 1-1/4" SS-1254 2.50" x 9.00"
S-82G 7/16" Diameter x 16-3/8" High
S-84 3/8" Diameter x 12" High
S-84A 3/8" Diameter x 15" High
S-84C 7/16" Diameter x 17-1/2" High FIG 6420
S-84D 7/16" Diameter x 20-1/2" High
GROCO STRAINER BASKETS (SCREENS)
Corrugated without handle with small hole.
SSD-17 4-13/16" Diameter x 10-1/8" High This unique and compact Seacock/Strainer combination sim-
SSD17A 4-13/16" Diameter x 12-1/4" High plifies installations, centralizes hardware location, making
SSD-17B 4-13/16" Diameter x 14-1/8" High maintenance a one-step operation. You can close the seacock
Regular type with Half Handle.
BS1 1-13/16" Diameter x 4" High and service the strainer without climbing and crawling about
BS2 1-13/16" Diameter x 6" High in your engine compartment. Removal of the spin-on thread-
BS4 2-5/8" Diameter x 5-5/16" High ed cover allows for simple cleaning of the monel filter basket.
BS5 2-5/8" Diameter x 7-7/8" High
BS8 3" Diameter x 9-3/4" High Features full-flow design and stainless steel wetted parts.
BS11 For SA { 3" Diameter x 11-7/8" High No. Each Weight Pipe Size Diam. x Height
BS19 Strainers 3" Diameter x 14-1/4" High BVS750 $658.10 6.75 lbs. 3/4" 5-1/8" x 11"
BS6 3" Diameter x 7-7/8" High
BVS1000 671.20 11.33 lbs. 1" 6" x 11.5"
BVS1250 1017.45 11.75 lbs. 1-1/4" 6" x 15"
BVS1500 1041.45 16.75 lbs. 1-1/2" 7-3/8" x 15"
For Repair Kits & Spare Parts — See Fig. 9946
