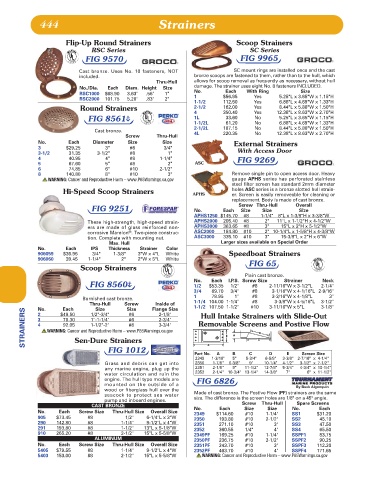

444 Strainers

Flip-Up Round Strainers Scoop Strainers
RSC Series SC Series
FIG 9570 FIG 9965

Cast bronze. Uses No. 10 fasteners, NOT SC mount rings are installed once and the cast
included. bronze scoops are fastened to them, rather than to the hull, which
Thru-Hull allows for scoop removal as frequently as necessary, without hull
No./Dia. Each Diam. Height Size damage. The strainer uses eight No. 8 fasteners INCLUDED.
RSC1000 $68.90 3.63" .56" 1" No. Each With Ring Size
RSC2000 101.75 5.20" .83" 2" 1 $56.95 Yes 5.25"L x 3.65"W x 1.15"H
1-1/2 112.50 Yes 6.88"L x 4.69"W x 1.33"H
Round Strainers 2-1/2 162.00 Yes 8.44"L x 5.88"W x 1.50"H
4 350.40 Yes 12.38"L x 8.63"W x 2.70"H
FIG 8561b 1L 33.60 No 5.25"L x 3.65"W x 1.15"H
1-1/2L 61.20 No 6.88"L x 4.69"W x 1.33"H
2-1/2L 107.15 No 8.44"L x 5.88"W x 1.50"H
Cast bronze.
Screw Thru-Hull 4L 220.35 No 12.38"L x 8.63"W x 2.70"H
No. Each Diameter Size Size External Strainers
3 $29.25 3" #8 3/4"
3-1/2 31.35 3-1/2" #8 1" With Access Door
4 40.95 4" #8 1-1/4" FIG 9269
5 67.60 5" #8 2" ASC
6 74.85 6" #10 2-1/2"
8 140.80 8" #10 3" Remove single pin to open access door. Heavy
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov gauge APHS series has perforated stainless
steel filter screen has standard 2mm diameter
Hi-Speed Scoop Strainers holes ASC series is a bronze slotted hull strain-
APHS er. Screen is easily removeable for cleaning or
replacement. Body is made of cast bronze.
Screw Thru-Hull Overall
FIG 9251 No. Each Size Size Size
APHS1250 $145.70 #8 1-1/4" 8"L x 1-3/8"H x 3-3/8"W
These high-strength, high-speed strain- APHS2000 205.40 #8 2" 11"L x 1-1/2"H x 4-1/2"W
ers are made of glass reinforced non- APHS3000 363.65 #8 3" 15"L x 2"H x 5-1/2"W
corrosive Marelon ® . Two-piece construc- ASC2000 184.80 #10 2" 10-1/4"L x 1-5/8"H x 4-3/8"W
tion. Complete with mounting nut. ASC3000 335.10 #10 3" 15-3/8"L x 2"H x 6"W
Max. Hull Larger sizes available on Special Order
No. Each IPS Thickness Strainer Color
906059 $36.95 3/4" 1-3/8" 3"W x 4"L White Speedboat Strainers
906060 39.45 1-1/4" 2" 2"W x 5"L White
FIG 65
Scoop Strainers
Plain cast bronze.
No. Each I.P.S. Screw Size Strainer Neck
FIG 8560b 1/2 $53.35 1/2" #8 2-11/16"W x 3-1/2"L 2-1/4"
3/4 69.70 3/4" #8 3-1/16"W x 4-1/16"L 2-9/16"
1 78.95 1" #8 3-3/16"W x 4-1/8"L 3"
Burnished cast bronze.
3-3/8"W x 4-5/16"L
#8
Inside of
Thru-Hull Screw Flange Size 1-1/4 104.00 1-1/4" #10 3-11/16"W x 5"L 3-1/2"
1-1/2 107.50 1-1/2"
3-1/8"
No.
Size
Each
STRAINERS 3 4 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Removable Screens and Postive Flow
Size
2-1/8"
#6
$49.50
1/2"-3/4"
2
Hull Intake Strainers with Slide-Out
2-3/4"
70.30
1"-1-1/4"
#6
3-3/4"
92.05
#8
1-1/2"-2"
Sen-Dure Strainers
FIG 1012
Part No. A B C D E Screen Size
2349 1-3/16" 5" 5-3/4" 6-5/8" 3-3/8" 2-7/16" x 4-1/4"
Grass and debris can get into 2350 1-7/8" 6-3/8" 9" 10-1/4" 4-1/2" 3-1/2" x 7-1/2"
any marine engine, plug up the 2351 2-1/8" 9" 11-1/2" 12-7/8" 5-3/4" 4-3/4" x 10-1/4"
water circulation and ruin the 2352 2-1/4" 10-3/4" 13-1/4" 14-3/8" 7" 6" x 11-1/2"
engine. The hull type models are FIG 6826
mounted on the outside of a By Buck Algonquin
wood or fiberglass hull over the
Made of cast bronze. The Postive Flow (PF) strainers are the same
seacock to protect sea water
pump and inboard engines. size. The difference is the screen holes are 1/8" on a 45° angle.
CAST BRONZE Screw Thru-Hull Spare Screens
No. Each Size Size No. Each
No. Each Screw Size Thru-Hull Size Overall Size 2349 $114.60 #10 1-1/4" SS1 $31.20
905 $73.45 #8 1/2" 6-1/4"L x 3"W 2350 193.80 #10 2-1/2" SS2 45.10
290 142.80 #8 1-1/4" 9-1/2"L x 4"W 2351 271.10 #10 3" SS3 47.50
291 193.80 #8 1-1/2" 13"L x 5-1/8"W 2352 360.55 1/4" 4" SS4 65.50
910 265.20 #8 2-1/2" 15"L x 5-5/8"W 2349PF 169.25 #10 1-1/4" SSPF1 83.75
ALUMINUM 2350PF 236.75 #10 2-1/2" SSPF2 90.25
No. Each Screw Size Thru-Hull Size Overall Size 2351PF 343.70 #10 3" SSPF3 112.20
5405 $79.55 #8 1-1/4" 9-1/2"L x 4"W 2352PF 463.70 #10 4" SSPF4 171.65
5403 153.00 #8 2-1/2" 15"L x 5-5/8"W WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
