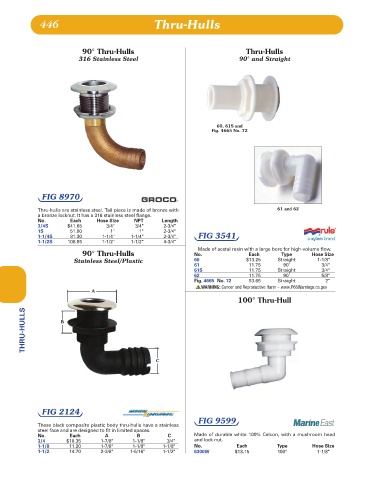

446 Thru-Hulls

90° Thru-Hulls Thru-Hulls
316 Stainless Steel 90° and Straight

60, 61S and
Fig. 4665 No. 72

FIG 8970

Thru-hulls are stainless steel. Tail piece is made of bronze with 61 and 62
a bronze locknut. It has a 316 stainless steel flange.
No. Each Hose Size NPT Length
3/4S $41.65 3/4" 3/4" 2-3/4"
1S 51.80 1" 1" 2-3/4"
1-1/4S 81.30 1-1/4" 1-1/4" 2-3/4" FIG 3541
1-1/2S 108.85 1-1/2" 1-1/2" 4-3/4"
Made of acetal resin with a large bore for high-volume flow.
90° Thru-Hulls No. Each Type Hose Size
Stainless Steel/Plastic 60 $13.25 Straight 1-1/8"
61 11.75 90˚ 3/4"
61S 11.75 Straight 3/4"
62 11.75 90˚ 5/8"
Fig. 4665 No. 72 53.65 Straight 2"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
A
100° Thru-Hull
THRU-HULLS B

C

FIG 2124
FIG 9599
These black composite plastic body thru-hulls have a stainless
steel face and are designed to fit in limited spaces.
No. Each A B C Made of durable white 100% Celcon, with a mushroom head
3/4 $10.35 1-7/8" 1-1/8" 3/4" and lock nut.
1-1/8 11.20 1-7/8" 1-1/8" 1-1/8" No. Each Type Hose Size
1-1/2 14.70 2-3/8" 1-5/16" 1-1/2" 6300W $13.15 100° 1-1/8"
