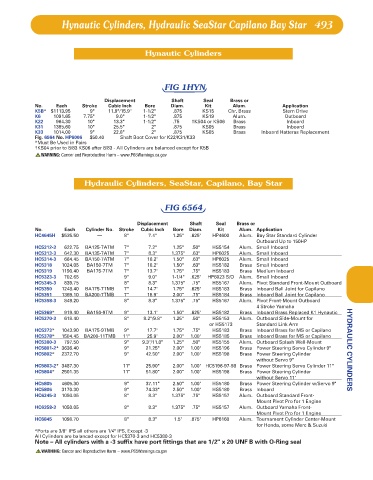

Page 494 - Lewis

Hynautic Cylinders, Hydraulic SeaStar Capilano Bay Star 493

Hynautic Cylinders

FIG 1HYN

Displacement Shaft Seal Brass or
No. Each Stroke Cubic Inch Bore Diam. Kit Alum. Application
K5B*$1113.95 9" 11.9"/15.9" 1-1/2" .875 KS15 Chr. Brass Stern Drive
K6 1091.65 7.75" 9.0" 1-1/2" .875 KS19 Alum. Outboard
K22 964.30 10" 13.3" 1-1/2" .75 †KS04 or KS06 Brass Inboard
K31 1385.60 10" 25.5" 2" .875 KS05 Brass Inboard
K33 1014.00 9" 22.8" 2" .875 KS05 Brass Inboard Hatteras Replacement
Fig. 6564 No. HP6006 $50.40 Shaft Boot Cover for K22/K31/K33
*Must Be Used in Pairs
†KS04 prior to 8/83 KS06 after 8/83 - All Cylinders are balanced except for K5B
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Hydraulic Cylinders, SeaStar, Capilano, Bay Star

FIG 6564

Displacement Shaft Seal Brass or
No. Each Cylinder No. Stroke Cubic Inch Bore Diam. Kit Alum. Application
HC4645H $535.50 — 8" 7.4" 1.25" .625" HP4600 Alum. Bay Star Standard Cylinder
Outboard Up to 150HP
HC5312-3 622.75 BA125-7ATM 7" 7.2" 1.25" .50" HS5154 Alum. Small Inboard
HC5313-3 642.30 BA135-7ATM 7" 8.3" 1.375" .63" HP6025 Alum. Small Inboard
HC5314-3 664.45 BA150-7ATM 7" 10.2" 1.50" .63" HP6025 Alum. Small Inboard
HC5318 1024.05 BA150-7TM 7" 10.2" 1.50" .63" HS5182 Brass Small Inboard
HC5319 1190.40 BA175-7TM 7" 13.7" 1.75" .75" HS5183 Brass Medium Inboard
HC5323-3 702.65 9" 9.0" 1-1/4" .625" HP6023 S/O Alum. Small Inboard
HC5345-3 839.75 8" 8.3" 1.375" .75" HS5167 Alum. Pivot Standard Front-Mount Outboard
HC5350 1248.40 BA175-7TMB 7" 14.7" 1.75" .625" HS5183 Brass Inboard Ball Joint for Capilano
HC5351 1369.10 BA200-7TMB 7" 18.9" 2.00" .75" HS5184 Brass Inboard Ball Joint for Capilano
HC5358-3 849.20 8" 8.3" 1.375" .75" HS5167 Alum. Pivot Front-Mount Outboard
4 Stroke Yamaha
HC5369* 919.40 BA150-9TM 9" 13.1" 1.50" .625" HS5182 Brass Inboard Brass Replaced K1 Hynautic
HC5370-3 618.40 8" 8.2"/9.8" 1.25" .50" HS5153 Alum. Outboard Side-Mount for
or HS5173 Standard Link Arm
HC5373* 1043.90 BA175-9TMB 9" 17.7" 1.75" .75" HS5183 Brass Inboard Brass for MS or Capilano
HC5378* 1504.45 BA200-11TMB 11" 25.9" 2.00" 1.00" HS5185 Brass Inboard Brass for MS or Capilano
HC5380-3 797.50 9" 9.3"/11.0" 1.25" .50" HS5155 Alum. Outboard Splash Well-Mount
HC5801-2* 3636.40 9" 21.25" 2.00" 1.00" HS5196 Brass Power Steering Servo Cylinder 9" HYDRAULIC CYLINDERS
HC5802* 2372.70 9" 42.50" 2.00" 1.00" HS5198 Brass Power Steering Cylinder
without Servo 9"
HC5803-2* 3487.30 11" 25.90" 2.00" 1.00" HC5196-97-98 Brass Power Steering Servo Cylinder 11"
HC5804* 2501.35 11" 51.80" 2.00" 1.00" HS5198 Brass Power Steering Cylinder
without Servo 11"
HC5805 4605.30 9" 37.11" 2.50" 1.00" HS5180 Brass Power Steering Cylinder w/Servo 9"
HC5806 3170.30 9" 74.33" 2.50" 1.00" HS5180 Brass Inboard
HC6345-3 1050.05 8" 8.3" 1.375" .75" HS5157 Alum. Outboard Standard Front-
Mount Pivot Pro for 1 Engine
HC6358-3 1050.05 8" 8.3" 1.375" .75" HS5157 Alum. Outboard Yamaha Front-
Mount Pivot Pro for 1 Engine
HC6845 1098.70 8" 8.3" 1.5" .875" HP6160 Alum. Tournament Cylinder Center-Mount
for Honda, some Merc & Suzuki
*Ports are 3/8" IPS all others are 1/4" IPS, Except -3
All Cylinders are balanced except for HC5370-3 and HC5380-3
Note – All cylinders with a -3 suffix have port fittings that are 1/2" x 20 UNF B with O-Ring seal
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
