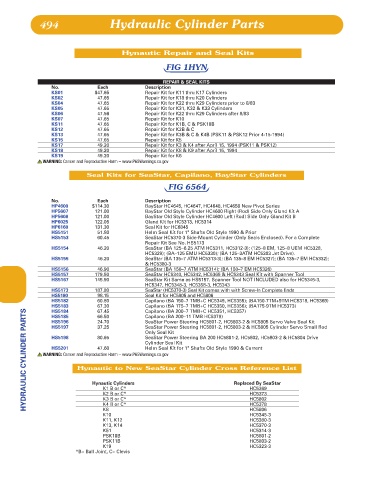

494 Hydraulic Cylinder Parts

Hynautic Repair and Seal Kits

FIG 1HYN

REPAIR & SEAL KITS
No. Each Description
KS01 $47.65 Repair Kit for K11 thru K17 Cylinders
KS02 47.65 Repair Kit for K18 thru K20 Cylinders
KS04 47.65 Repair Kit for K22 thru K29 Cylinders prior to 8/83
KS05 47.65 Repair Kit for K31, K32 & K33 Cylinders
KS06 47.56 Repair Kit for K22 thru K29 Cylinders after 8/83
KS07 47.65 Repair Kit for K10
KS11 47.65 Repair Kit for K1B, C & PSK10B
KS12 47.65 Repair Kit for K2B & C
KS13 47.65 Repair Kit for K3B & C & K4B (PSK11 & PSK12 Prior 4-15-1994)
KS15 47.65 Repair Kit for K5
KS17 49.20 Repair Kit for K3 & K4 after April 15, 1994 (PSK11 & PSK12)
KS18 49.20 Repair Kit for K8 & K9 after April 15, 1994
KS19 49.20 Repair Kit for K6
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Seal Kits for SeaStar, Capilano, BayStar Cylinders

FIG 6564

No. Each Description
HP4600 $114.30 BayStar HC4645, HC4647, HC4648, HC4658 New Pivot Series
HP5607 121.00 BayStar Old Style Cylinder HC4600 Right (Rod) Side Only Gland Kit A
HP5608 121.00 BayStar Old Style Cylinder HC4600 Left (Rod) Side Only Gland Kit B
HP6025 122.05 Gland Kit for HC5313, HC5314
HP6160 131.30 Seal Kit for HC6845
HS5151 51.80 Helm Seal Kit for 1" Shafts Old Style 1990 & Prior
HS5153 60.45 SeaStar HC5370-3 Side-Mount Cylinder (Only Seals Enclosed). For a Complete
Repair Kit See No. HS5173
HS5154 46.20 SeaStar (BA 125–6.25 ATM HC5311, HC5312-3); (125–8 EM, 125–8 UEM HC5328,
HC5329); (BA–125 EMU HC5330); (BA 125–3ATM HC5303 Jet Drive).
HS5155 46.20 SeaStar (BA 135–7 ATM HC5313-3); (BA 135–8 EM HC5327); (BA 135–7 EM HC5332);
& HC5380-3
HS5156 46.90 SeaStar (BA 150–7 ATM HC5314); (BA 150–7 EM HC5326)
HS5157 179.50 SeaStar HC5340, HC5342, HC5365 & HC5343 Seal Kit with Spanner Tool
HS5167 145.90 SeaStar Kit Same as HS5157. Spanner Tool NOT INCLUDED also for HC5345-3,
HC5347, HC5348-3, HC5358-3, HC5343
HS5173 187.80 SeaStar (HC5370-3) Seal Kit comes with with Screw-In Complete Ends
HS5180 98.15 Seal Kit for HC5805 and HC5806
HS5182 60.80 Capilano (BA 150–7 TMB+C HC5349, HC5355); (BA150-7TM+9TM HC5318, HC5369)
HS5183 67.30 Capilano (BA 175–7 TMB+C HC5350, HC5356); (BA175-9TM HC5373)
HYDRAULIC CYLINDER PARTS WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Replaced By SeaStar
HS5184
Capilano (BA 200–7 TMB+C HC5351, HC5357)
67.45
HS5185
Capilano (BA 200–11 TMB HC5378)
66.50
SeaStar Power Steering HC5801-2, HC5803-2 & HC5805 Servo Valve Seal Kit
24.70
HS5196
SeaStar Power Steering HC5801-2, HC5803-2 & HC5805 Cylinder Servo Small Rod
HS5197
37.25
Only Seal Kit
80.65
SeaStar Power Steering BA 200 HC5801-2, HC5802, HC5803-2 & HC5804 Drive
HS5198
Cylinder Seal Kit
HS5201
47.60
Helm Seal Kit for 1" Shafts Old Style 1990 & Current
Hynautic to New SeaStar Cylinder Cross Reference List
Hynautic Cylinders
K1 B or C*
K2 B or C*
HC5373
K3 B or C*
HC5802
HC5378
K4 B or C*
K8
HC5806
K10 HC5369
HC5345-3
K11, K12 HC5380-3
K13, K14 HC5370-3
K51 HC5314-3
PSK10B HC5801-2
PSK11B HC5803-2
K19 HC5323-3
*B= Ball Joint, C= Clevis
