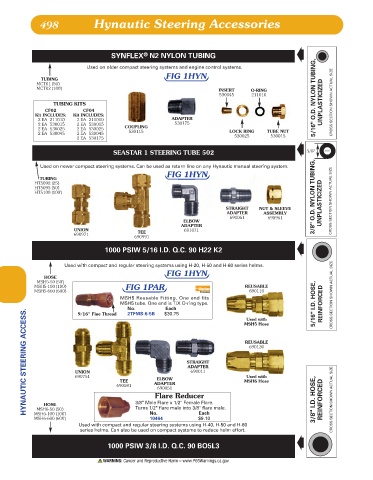

498 Hynautic Steering Accessories

SYNFLEX N2 NYLON TUBING Á
®
Used on older compact steering systems and engine control systems.
FIG 1HYN
TUBING
MCT01 (50')
MCT02 (100') INSERT O-RING
530045 211010 5/16" O.D. NYLON TUBING,
TUBING KITS UNPLASTICIZED CROSS SECTION SHOWN ACTUAL SIZE
CF02 CF04
Kit INCLUDES: Kit INCLUDES:
2 EA 211010 2 EA 211010 ADAPTER
2 EA 530015 2 EA 530015 COUPLING 530175
2 EA 530025 2 EA 530025 530115 LOCK RING TUBE NUT
2 EA 530045 2 EA 530045
2 EA 530175 530025 530015

SEASTAR 1 STEERING TUBE 502 Á 3/8" 3/16"

Used on newer compact steering systems. Can be used as return line on any Hynautic manual steering system.
FIG 1HYN
TUBING
HT5092 (25')
HT5095 (50')
HT5100 (100') 3/8" O.D. NYLON TUBING,

STRAIGHT NUT & SLEEVE UNPLASTICIZED CROSS SECTION SHOWN ACTUAL SIZE
ADAPTER ASSEMBLY
691061 690961
ELBOW
ADAPTER
UNION TEE 691071
690971
690991
1000 PSIW 5/16 I.D. Q.C. 90 H22 K2 Á

Used with compact and regular steering systems using H-20, H-50 and H-60 series helms.
FIG 1HYN
HOSE
MSH5-50 (50')
MSH5-100 (100') FIG 1PAR REUSABLE
MSH5-600 (600') 690110
MSH5 Reusable Fitting. One end fits CROSS SECTION SHOWN ACTUAL SIZE
MSH5 tube. One end is T/X O-ring type. 5/16" I.D. HOSE, REINFORCED
No. Each
HYNAUTIC STEERING ACCESS.
9/16" Fine Thread 2TFMS-6-5B $30.75
Used with
MSH5 Hose

REUSABLE
690130

STRAIGHT
ADAPTER
UNION 690011
690751 Used with
TEE ELBOW MSH6 Hose
690081 ADAPTER
690051
Flare Reducer
3/8" Male Flare x 1/2" Female Flare. 3/8" I.D. HOSE, REINFORCED CROSS SECTION SHOWN ACTUAL SIZE
HOSE
MSH6-50 (50') Turns 1/2" flare male into 3/8" flare male.
MSH6-100 (100') No. Each
MSH6-600 (600') 10464 $9.10
Used with compact and regular steering systems using H-40, H-50 and H-60
series helms. Can also be used on compact systems to reduce helm effort.

1000 PSIW 3/8 I.D. Q.C. 90 BO5L3 Á
