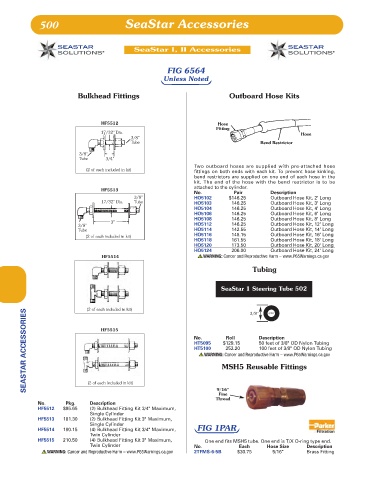

500 SeaStar Accessories

SeaStar I, II Accessories

FIG 6564
Unless Noted

Bulkhead Fittings Outboard Hose Kits

HF5512 Hose
Fitting
17/32" Dia. Hose
3/8"
Tube Bend Restrictor
3/8"
Tube 3/4"
Two outboard hoses are supplied with pre-attached hose
(2 of each included in kit) fittings on both ends with each kit. To prevent hose kinking,
bend restrictors are supplied on one end of each hose in the
kit. The end of the hose with the bend restrictor is to be
attached to the cylinder.
HF5513
No. Pair Description
3/8" HO5102 $146.25 Outboard Hose Kit, 2' Long
17/32" Dia. Tube HO5103 146.25 Outboard Hose Kit, 3' Long
HO5104 146.25 Outboard Hose Kit, 4' Long
HO5106 146.25 Outboard Hose Kit, 6' Long
HO5108 146.25 Outboard Hose Kit, 8' Long
3"
3/8" HO5112 146.25 Outboard Hose Kit, 12' Long
Tube HO5114 142.55 Outboard Hose Kit, 14' Long
(2 of each included in kit) HO5116 148.15 Outboard Hose Kit, 16' Long
HO5118 161.55 Outboard Hose Kit, 18' Long
HO5120 173.50 Outboard Hose Kit, 20' Long
HO5124 206.00 Outboard Hose Kit, 24' Long
HF5514 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Tubing

SeaStar 1 Steering Tube 502

SEASTAR ACCESSORIES HF5515 No. WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
(2 of each included in kit)
3/8"
3/16"

Roll
Description
50 feet of 3/8" OD Nylon Tubing
HT5095
$129.15
100 feet of 3/8" OD Nylon Tubing
252.20
HT5100
MSH5 Reusable Fittings
(2 of each included in kit)
9/16"
Fine
Thread
No. Pkg. Description
HF5512 $95.65 (2) Bulkhead Fitting Kit 3/4" Maximum,
Single Cylinder
HF5513 101.30 (2) Bulkhead Fitting Kit 3" Maximum,
Single Cylinder
HF5514 180.15 (4) Bulkhead Fitting Kit 3/4" Maximum, FIG 1PAR
Twin Cylinder
HF5515 210.50 (4) Bulkhead Fitting Kit 3" Maximum, One end fits MSH5 tube. One end is T/X O-ring type end.
Twin Cylinder No. Each Hose Size Description
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 2TFMS-6-5B $30.75 5/16" Brass Fitting
