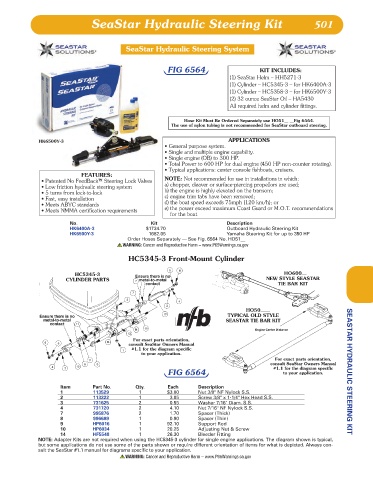

SeaStar Hydraulic Steering Kit 501

SeaStar Hydraulic Steering System

FIG 6564 KIT INCLUDES:
(1) SeaStar Helm – HH5271-3
(1) Cylinder – HC5345-3 – for HK6400A-3
(1) Cylinder – HC5358-3 – for HK6500Y-3
(2) 32 ounce SeaStar Oil – HA5430
All required helm and cylinder fittings.

Hose Kit Must Be Ordered Separately use HO51__ __Fig 6564.
The use of nylon tubing is not recommended for SeaStar outboard steering.

HK6500Y-3 APPLICATIONS
• General purpose system.
• Single and multiple engine capability.
• Single engine (OB) to 300 HP.
• Total Power to 600 HP for dual engine (450 HP non-counter rotating).
• Typical applications: center console fishboats, cruisers.
FEATURES:
• Patented No FeedBack™ Steering Lock Valves NOTE: Not recommended for use in installations in which:
• Low friction hydraulic steering system a) chopper, cleaver or surface-piercing propellors are used;
• 5 turns from lock-to-lock b) the engine is highly elevated on the transom;
• Fast, easy installation c) engine trim tabs have been removed;
• Meets ABYC standards d) the boat speed exceeds 75mph (120 km/h); or
• Meets NMMA certification requirements e) the power exceed maximum Coast Guard or M.O.T. recommendations
for the boat.
No. Kit Description
HK6400A-3 $1734.70 Outboard Hydraulic Steering Kit
HK6500Y-3 1682.05 Yamaha Steering Kit for up to 350 HP
Order Hoses Separately — See Fig. 6564 No. HO51__
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

HC5345-3 Front-Mount Cylinder

HC5345-3 HO600
CYLINDER PARTS NEW STYLE SEASTAR
TIE BAR KIT

HO50
TYPICAL OLD STYLE
SEASTAR TIE BAR KIT

For exact parts orientation,
consult SeaStar Owners Manual
#1.1 for the diagram specific
to your application.
For exact parts orientation,
consult SeaStar Owners Manual
#1.1 for the diagram specific
FIG 6564 to your application. SEASTAR HYDRAULIC STEERING KIT

Item Part No. Qty. Each Description
1 113529 1 $3.00 Nut 3/8" NF Nylock S.S.
2 113222 1 3.05 Screw 3/8" x 1-1/4" Hex Head S.S.
3 731625 2 0.55 Washer 7/16" Diam. S.S.
4 731720 2 4.10 Nut 7/16" NF Nylock S.S.
7 995876 2 1.70 Spacer (Thick)
8 996689 1 0.90 Spacer (Thin)
9 HP6016 1 92.10 Support Rod
10 HP6034 1 20.25 Adjusting Nut & Screw
14 HF5548 1 26.30 Bleeder Fitting
NOTE: Adapter Kits are not required when using the HC5345-3 cylinder for single engine applications. The diagram shown is typical,
but some applications do not use some of the parts shown or require different orientation of items for what is depicted. Always con-
sult the SeaStar #1.1 manual for diagrams specific to your application.
