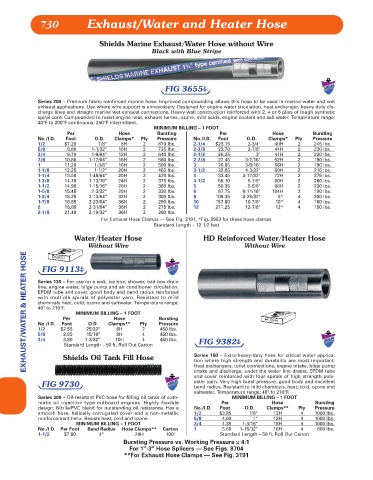

730 Exhaust/Water and Heater Hose

Shields Marine Exhaust/Water Hose without Wire
Black with Blue Stripe

FIG 3655b

Series 200 – Premium fabric reinforced marine hose. Improved compounding allows this hose to be used in marine water and wet
exhaust applications. Use where wire support is unnecessary. Designed for engine water circulation, heat exchanger, heavy-duty dis-
charge lines and straight marine wet exhaust connections. Heavy-wall construction reinforced with 2, 4 or 6 plies of tough synthetic
spiral cord. Compounded to resist engine heat, exhaust fumes, ozone, mild acids, engine coolant and salt water. Temperature range:
40°F to 200°F continuous; 250°F intermittent.
MINIMUM BILLING – 1 FOOT
Per Hose Bursting Per Hose Bursting
No./I.D. Foot O.D. Clamps* Ply Pressure No./I.D. Foot O.D. Clamps* Ply Pressure
1/2 $7.20 7/8" 8H 2 870 lbs. 2-1/4 $23.15 2-3/4" 40H 2 245 lbs.
5/8 8.80 1-1/32" 10H 2 725 lbs. 2-3/8 23.70 2-7/8" 44H 2 230 lbs.
3/4 9.70 1-9/64" 12H 2 640 lbs. 2-1/2 26.25 3" 44H 2 220 lbs.
7/8 10.80 1-17/64" 16H 2 560 lbs. 2-7/8 27.45 3-7/16" 52H 2 190 lbs.
1 11.20 1-3/8" 16H 2 500 lbs. 3 28.05 3-9/16" 56H 2 190 lbs.
1-1/8 12.25 1-1/2" 20H 2 465 lbs. 3-1/2 32.85 4-3/32" 60H 2 215 lbs.
1-1/4 13.50 1-45/64" 20H 2 420 lbs. 4 33.45 4-17/32" 72H 2 275 lbs.
1-3/8 14.10 1-13/16" 24H 2 375 lbs. 4-1/2 55.10 5-1/8" 80H 2 260 lbs.
1-1/2 14.90 1-15/16" 28H 2 360 lbs. 5 58.35 5-5/8" 88H 2 230 lbs.
1-5/8 15.45 2-3/32" 28H 2 330 lbs. 6 67.75 6-11/16" 104H 2 190 lbs.
1-3/4 16.25 2-13/64" 32H 2 300 lbs. 8 109.35 8-25/32" 8* 4 200 lbs.
1-7/8 16.55 2-23/64" 36H 2 290 lbs. 10 157.00 10-7/8" 10* 4 160 lbs.
2 16.80 2-31/64" 36H 2 275 lbs. 12 271.25 12-7/8" 12* 4 150 lbs.
2-1/8 21.40 2-19/32" 36H 2 260 lbs.
For Exhaust Hose Clamps — See Fig. 3191, *Fig. 8953 for these hose clamps
Standard Length – 12-1/2 feet

Water/Heater Hose HD Reinforced Water/Heater Hose
Without Wire Without Wire
EXHAUST/WATER & HEATER HOSE

FIG 9113b

Series 130 – For use on a sink, ice box, shower, bait box drain
line, engine water, bilge pump and air conditioner circulation.
EPDM tube and cover, good body and bend radius reinforced
with multiple spirals of polyester yarn. Resistant to mild
chemicals heat, cold, ozone and saltwater. Temperature range:
40° to 210°F.
MINIMUM BILLING – 1 FOOT
Per Hose Bursting
No./I.D. Foot O.D. Clamps** Ply Pressure
1/2 $2.55 25/32" 6H 2 450 lbs.
5/8 2.85 15/16" 8H 4 450 lbs.
3/4 3.80 1-3/32" 10H 4 450 lbs. FIG 9382b
Standard Length – 50 ft. Roll Out Carton

Shields Oil Tank Fill Hose Series 160 – Extra-heavy-duty hose for critical water applica-
tion where high strength and durability are most important.
Heat exchangers, toilet connections, engine intake, bilge pump
intake and discharge, under the water line drains. EPDM tube
and cover reinforced with four spirals of high strength poly-
FIG 9730 ester yarn. Very high burst pressure, good body and excellent
bend radius. Resistant to mild chemicals, heat, cold, ozone and
saltwater. Temperature range: 40° to 210°F.
Series 309 – Oil-resistant PVC hose for filling oil tanks of auto- MINIMUM BILLING – 1 FOOT
matic oil injection type outboard engines. Highly flexible Per Hose Bursting
design. Nitrile/PVC blend for outstanding oil resistance. Has a No./I.D. Foot O.D. Clamps** Ply Pressure
smooth bore, helically corrugated cover and a non-metallic 1/2 $3.85 7/8" 12H 4 1000 lbs.
reinforcement helix. Resists heat, cold and ozone. 5/8 4.00 1" 12H 4 1000 lbs.
MINIMUM BILLING – 1 FOOT 3/4 4.35 1-3/16" 16H 4 1000 lbs.
No./I.D. Per Foot Bend Radius Hose Clamps** Carton 1 5.65 1-15/32" 16H 4 800 lbs.
1-1/2 $7.60 4" 24H 100' Standard Length – 50 ft. Roll Out Carton
Bursting Pressure vs. Working Pressure = 4:1
For 1"-3" Hose Splicers — See Figs. 8704
**For Exhaust Hose Clamps — See Fig. 3191
