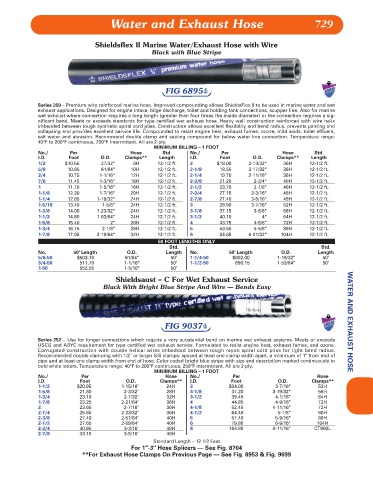

Page 730 - Lewis

Water and Exhaust Hose 729

Shieldsflex II Marine Water/Exhaust Hose with Wire
Black with Blue Stripe

FIG 6895b

Series 250 – Premium wire reinforced marine hose. Improved compounding allows ShieldsFlex II to be used in marine water and wet
exhaust applications. Designed for engine intake, bilge discharge, toilet and holding tank connections, scupper line. Also for marine
wet exhaust where connection requires a long length (greater than four times the inside diameter) or the connection requires a sig-
nificant bend. Meets or exceeds standards for type certified wet exhaust hose. Heavy wall construction reinforced with wire helix
imbedded between tough synthetic spiral cord plies. Construction allows excellent flexibility and bend radius, prevents panting and
collapsing and provides excellent service life. Compounded to resist engine heat, exhaust fumes, ozone, mild acids, toilet effluent,
salt water and abrasion. Recommend double clamp and sealing compound for below water line connection. Temperature range:
40°F to 200°F continuous, 250°F intermittent. All are 2-ply.
MINIMUM BILLING – 1 FOOT
No./ Per Hose Std. No./ Per Hose Std.
I.D. Foot O.D. Clamps** Length I.D. Foot O.D. Clamps** Length
1/2 $10.55 27/32" 8H 12-1/2 ft. 2 $18.00 2-13/32" 36H 12-1/2 ft.
5/8 10.65 61/64" 10H 12-1/2 ft. 2-1/8 18.55 2-17/32" 36H 12-1/2 ft.
3/4 10.75 1-1/16" 12H 12-1/2 ft. 2-1/4 19.70 2-11/16" 36H 12-1/2 ft.
7/8 11.45 1-3/16" 16H 12-1/2 ft. 2-3/8 21.20 2-3/4" 40H 12-1/2 ft.
1 11.70 1-5/16" 16H 12-1/2 ft. 2-1/2 23.70 2-7/8" 40H 12-1/2 ft.
1-1/8 12.30 1-7/16" 20H 12-1/2 ft. 2-3/4 27.15 3-3/16" 48H 12-1/2 ft.
1-1/4 12.65 1-19/32" 24H 12-1/2 ft. 2-7/8 27.40 3-5/16" 48H 12-1/2 ft.
1-5/16 13.40 1-5/8" 24H 12-1/2 ft. 3 28.90 3-7/16" 52H 12-1/2 ft.
1-3/8 14.00 1-23/32" 24H 12-1/2 ft. 3-1/8 37.15 3-5/8" 56H 12-1/2 ft.
1-1/2 14.60 1-53/64" 24H 12-1/2 ft. 3-1/2 40.10 4" 64H 12-1/2 ft.
1-5/8 15.40 2" 28H 12-1/2 ft. 4 43.75 4-5/8" 72H 12-1/2 ft.
1-3/4 16.75 2-1/8" 28H 12-1/2 ft. 5 53.55 5-5/8" 88H 12-1/2 ft.
1-7/8 17.05 2-19/64" 32H 12-1/2 ft. 6 84.85 6-21/32" 104H 12-1/2 ft.
50 FOOT LENGTHS ONLY
Std. Std.
No. 50' Length O.D. Length No. 50' Length O.D. Length
5/8-50 $503.10 61/64" 50' 1-1/4-50 $602.00 1-19/32" 50'
3/4-50 511.70 1-1/16" 50' 1-1/2-50 690.15 1-53/64" 50'
1-50 552.55 1-5/16" 50'
Shieldsaust – C For Wet Exhaust Service
Black With Bright Blue Stripe And Wire — Bends Easy

FIG 9037b WATER AND EXHAUST HOSE

Series 252 – Use for longer connections which require a very substantial bend on marine wet exhaust systems. Meets or exceeds
USCG and ABYC requirement for type certified wet exhaust service. Formulated to resist engine heat, exhaust fumes, and ozone.
Corrugated construction with double helical wires imbedded between tough rayon spiral cord plies for tight bend radius.
Recommended double clamping with 1/2" or larger S/S clamps: spaced at least one clamp width apart, a minimum of 1" from end of
pipe and at least one clamp width from end of hose. Color coded bright blue stripe with size and description marked continuously in
bold white letters. Temperature range: 40°F to 200°F continuous, 250°F intermittent. All are 2-ply.
MINIMUM BILLING – 1 FOOT
No./ Per Hose No./ Per Hose
I.D. Foot O.D. Clamps** I.D. Foot O.D. Clamps**
1-1/2 $20.95 1-15/16" 24H 3 $34.00 3-7/16" 52H
1-5/8 21.80 2-3/32" 28H 3-1/8 37.20 3-19/32" 56H
1-3/4 23.10 2-7/32" 32H 3-1/2 39.45 4-1/16" 64H
1-7/8 23.25 2-21/64" 36H 4 44.85 4-9/16" 72H
2 23.65 2-7/16" 36H 4-1/8 52.45 4-11/16" 72H
2-1/4 25.60 2-23/32" 36H 4-1/2 64.40 5-1/8" 80H
2-3/8 27.40 2-51/64" 40H 5 57.40 5-9/16" 88H
2-1/2 27.65 2-59/64" 40H 6 79.80 6-9/16" 104H
2-3/4 30.95 3-3/16" 48H 8 164.80 8-11/16" CT900L
2-7/8 33.15 3-5/16" 48H
Standard Length – 12-1/2 Feet
For 1"-3" Hose Splicers — See Fig. 8704
**For Exhaust Hose Clamps On Previous Page — See Fig. 8953 & Fig. 9699
