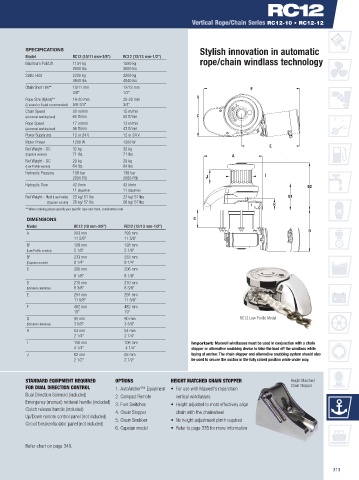

Vertical Rope/Chain Series RC12-10 • RC12-12

SPECIFICATIONS Stylish innovation in automatic
Model RC12 (10/11 mm-3/8”) RC12 (12/13 mm-1/2”)
Maximum Pull/Lift 1134 kg 1590 kg rope/chain windlass technology
2500 lbs 3500 lbs
Static Hold 2200 kg 2200 kg
4840 lbs 4840 lbs
Chain Short Link** 10/11 mm 12/13 mm
3/8” 1/2”
Rope Size (Nylon)** 16-20 mm 20-22 mm
(3 strand or 8 plait recommended) 5/8-3/4” 3/4”
Chain Speed 20 m/min 15 m/min
(at normal working load) 65 ft/min 50 ft/min
Rope Speed 17 m/min 13 m/min
(at normal working load) 56 ft/min 43 ft/min
Power Supply (DC) 12 or 24 V 12 or 24 V
Motor Power 1200 W 1200 W
Net Weight - DC 32 kg 32 kg
(Capstan version) 71 lbs 71 lbs
Net Weight - DC 29 kg 29 kg
(Low Profile version) 64 lbs 64 lbs
Hydraulic Pressure 138 bar 138 bar I
2000 PSI 2000 PSI J
Hydraulic Flow 42 l/min 42 l/min
11 USgal/min 11 USgal/min
Net Weight - Hyd (Low Profile) 23 kg/ 51 lbs 23 kg/ 51 lbs
(Capstan version) 26 kg/ 57 lbs 26 kg/ 57 lbs
** When ordering please specify your specific rope and chain, combination rode
DIMENSIONS
Model RC12 (10 mm-3/8”) RC12 (12/13 mm-1/2”)
A 293 mm 293 mm
11 5/8” 11 5/8”
B 1 128 mm 128 mm
(Low Profile version) 5 1/8” 5 1/8”
B 2 233 mm 233 mm
(Capstan version) 9 1/4” 9 1/4”
C 206 mm 206 mm
8 1/8” 8 1/8”
D 210 mm 210 mm
(Std deck clearance) 8 3/8” 8 3/8”
E 294 mm 294 mm
11 5/8” 11 5/8”
F 482 mm 482 mm
19” 19”
G 90 mm 90 mm RC12 Low Profile Model
(Std deck clearance) 3 5/8” 3 5/8”
H 54 mm 54 mm
2 1/4” 2 1/4”
I 106 mm 106 mm Important: Maxwell windlasses must be used in conjunction with a chain
4 1/4” 4 1/4” stopper or alternative snubbing device to take the load off the windlass while
J 62 mm 62 mm laying at anchor. The chain stopper and alternative snubbing system should also
2 1/2” 2 1/2” be used to secure the anchor in the fully raised position while under way.

STANDARD EQUIPMENT REQUIRED OPTIONS HEIGHT MATCHED CHAIN STOPPER Height Matched
FOR DUAL DIRECTION CONTROL 1. AutoAnchor™ Equipment • For use with Maxwell’s rope/chain Chain Stopper
Dual Direction Solenoid (included) 2. Compact Remote vertical windlasses
Emergency (manual) retrieval handle (included) 3. Foot Switches • Height adjusted to most effectively align
Clutch release handle (included) 4. Chain Stopper chain with the chainwheel
Up/Down remote control panel (not included) 5. Chain Snubber • No height adjustment plinth required
Circuit breaker/isolator panel (not included)
6. Capstan model • Refer to page 335 for more information

Refer chart on page 340.
