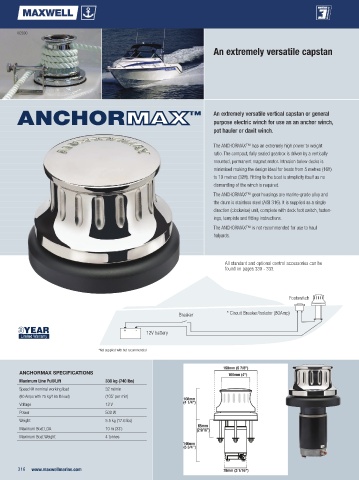

VC500

An extremely versatile capstan

An extremely versatile vertical capstan or general
purpose electric winch for use as an anchor winch,
pot hauler or davit winch.

The ANCHORMAX™ has an extremely high power to weight
ratio. The compact, fully sealed gearbox is driven by a vertically
mounted, permanent magnet motor. Intrusion below decks is
minimised making the design ideal for boats from 5 metres (16ft)
to 10 metres (32ft). Fitting to the boat is simplicity itself as no
dismantling of the winch is required.
The ANCHORMAX™ gear housings are marine-grade alloy and
the drum is stainless steel (AISI 316). It is supplied as a single
direction (clockwise) unit, complete with deck foot switch, fasten-
ings, template and fitting instructions.
The ANCHORMAX™ is not recommended for use to haul
halyards.

All standard and optional control accessories can be
found on pages 330 - 333.

Footswitch

* Circuit Breaker/Isolator (80Amp)
Breaker * Circuit Breaker/Isolator (80Amp)

12V battery
12V battery

*Not supplied with but recommended

150mm (5 7/8”)
ANCHORMAX SPECIFICATIONS 100mm (4”)
Maximum Line Pull/Lift 330 kg (740 lbs)
Speed @ nominal working load 32 m/min
(80 Amps with 75 kg/165 lb load) (105’ per min)
108mm
Voltage 12 V (4 1/4”)
Power 500 W
Weight 5.5 kg (17.6 lbs)
65mm
Maximum Boat LOA 10 m (33’) (2 9/16”)
Maximum Boat Weight 4 tonnes
146mm
(5 3/4”)

316 www.maxwellmarine.com 78mm (3 1/16”)
