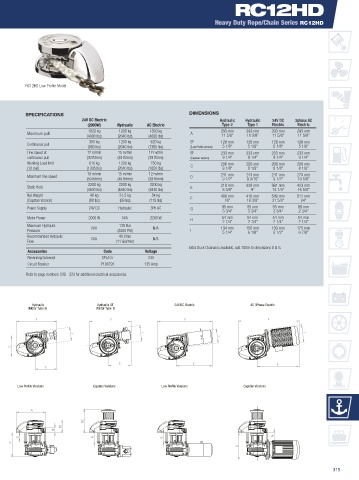

Heavy Duty Rope/Chain Series RC12HD

RC12HD Low Profile Model

SPECIFICATIONS DIMENSIONS
24V DC Electric Hydraulic Hydraulic 24V DC 3phase AC
(2000W) Hydraulic AC Electric Type 2 Type 1 Electric Electric
Maximum pull 1820 kg 1200 kg 1820 kg A 293 mm 293 mm 293 mm 293 mm
(4000 lbs) (2640 lbs) (4000 lbs) 11 5/8” 11 5/8” 11 5/8” 11 5/8”
300 kg 1200 kg 620 kg B 1 128 mm 128 mm 128 mm 128 mm
Continuous pull
(660 lbs) (2640 lbs) (1360 lbs) (Low Profile version) 5 1/8” 5 1/8” 5 1/8” 5 1/8”
Line speed at 12 m/min 15 m/min 12 m/min B 2 233 mm 233 mm 233 mm 233 mm
continuous pull (39 ft/min) (49 ft/min) (39 ft/min) (Capstan version) 9 1/4” 9 1/4” 9 1/4” 9 1/4”
Working Load limit 610 kg 1200 kg 750 kg 206 mm 206 mm 206 mm 206 mm
(10 min) (1335 lbs) (2640 lbs) (1650 lbs) C 8 1/8” 8 1/8” 8 1/8” 8 1/8”
18 m/min 15 m/min 12 m/min 241 mm 243 mm 241 mm 270 mm
Maximum line speed D
(59 ft/min) (49 ft/min) (39 ft/min) 9 1/2” 9 9/16” 9 1/2” 10 5/8”
2200 kg 2200 kg 2200 kg 218 mm 228 mm 361 mm 423 mm
Static Hold E
(4840 lbs) (4840 lbs) (4840 lbs) 8 5/8” 9” 14 1/4” 16 5/8”
Net Weight 40 kg 31.5 kg 54 kg 406 mm 416 mm 549 mm 611 mm
(Capstan Version) (88 lbs) (69 lbs) (118 lbs) F 16” 16 3/8” 21 5/8” 24”
Power Supply 24V DC Hydraulic 3Ph AC G 95 mm 95 mm 95 mm 69 mm
3 3/4”
2 3/4”
3 3/4”
3 3/4”
Motor Power 2000 W N/A 2200 W H 54 mm 54 mm 54 mm 54 mm
2 1/4”
2 1/4”
2 1/4”
2 1/4”
Maximum Hydraulic N/A 138 Bar N/A
Pressure (2000 PSI) I 134 mm 156 mm 139 mm 175 mm
6 7/8”
5 1/2”
6 1/8”
5 1/4”
Recommended Hydraulic N/A 40 l/min N/A
Flow (11 Gal/min)
Extra Deck Clearance available, add 100m to dimensions D & G.
Accessories Code Voltage
Reversing Solenoid SP5107 24V
Circuit Breaker P100791 135 Amp
Refer to page numbers 330 - 333 for additional electrical accessories.
Hydraulic Hydraulic GT 24V DC Electric AC 3Phase Electric
(Motor Type 2) (Motor Type 1)
F F I F F I
C I I

E E E
E

Low Profile Versions Capstan Versions Low Profile Versions Capstan Versions

A
B2
B1
H
G G G G
D
D

315
