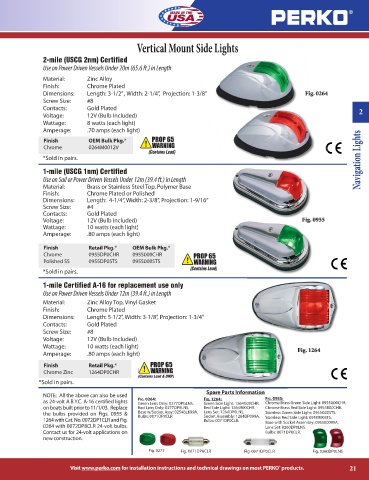

Page 21 - Perko

Vertical Mount Side Lights

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Length: 3-1/2” , Width: 2-1/4”, Projection: 1-3/8” Fig. 0264
Screw Size: #8
Contacts: Gold Plated 2
Voltage: 12V (Bulb Included)
Wattage: 8 watts (each light)
Amperage: .70 amps (each light)
Finish OEM Bulk Pkg.*
Chrome 0264M0012V
*Sold in pairs. Navigation Lights
1-mile (USCG 1nm) Certified
Use on Sail or Power Driven Vessels Under 12m (39.4 ft.) in Length
Material: Brass or Stainless Steel Top, Polymer Base
Finish: Chrome Plated or Polished
Dimensions: Length: 4-1/4”, Width: 2-3/8”, Projection: 1-9/16”
Screw Size: #4
Contacts: Gold Plated
Voltage: 12V (Bulb Included) Fig. 0955
Wattage: 10 watts (each light)
Amperage: .80 amps (each light)

Finish Retail Pkg.* OEM Bulk Pkg.*
Chrome 0955DP0CHR 0955000CHR
Polished SS 0955DP0STS 0955000STS
*Sold in pairs.

1-mile Certified A-16 for replacement use only
Use on Power Driven Vessels Under 12m (39.4 ft.) in Length
Material: Zinc Alloy Top, Vinyl Gasket
Finish: Chrome Plated
Dimensions: Length: 5-1/2”, Width: 3-1/8”, Projection: 1-3/4”
Contacts: Gold Plated
Screw Size: #8
Voltage: 12V (Bulb Included)
Wattage: 10 watts (each light)
Fig. 1264
Amperage: .80 amps (each light)
Finish Retail Pkg.*
Chrome Zinc 1264DP0CHR
*Sold in pairs.

Spare Parts Information
NOTE: All the above can also be used FIG. 0264: FIG. 1264: FIG. 0955:
as 24-volt A.B.Y.C. A-16 certified lights Green Lens Only: 0277DPGLNS. Green Side Light: 1264G00CHR. Chrome Brass Green Side Light: 0955G00CHR.
on boats built prior to 11/1/03. Replace Red Lens Only: 0277DPRLNS. Red Side Light: 1264R00CHR. Chrome Brass Red Side Light: 0955R00CHR.
the bulbs provided on Figs. 0955 & Base w/Socket Assy: 0254BLK99A. Lens Set: 1264DP0LNS. Stainless Green Side Light: 0955G00STS.
Bulbs: 0071DP8CLR
Socket Assembly: 1264DP099A.
Stainless Red Side Light: 0955R00STS.
1264 with Cat. No. 0072DP1CLR and Fig. Bulbs: 0071DP0CLR. Base with Socket Assembly: 095500099A.
0264 with 0072DP8CLR 24-volt bulbs. Lens Set: 0260DP0LNS.
Contact us for 24-volt applications on Bulbs: 0071DP0CLR.
new construction.
Fig. 0277 Fig. 0071DP8CLR Fig. 0071DP0CLR Fig. 0260DP0LNS
