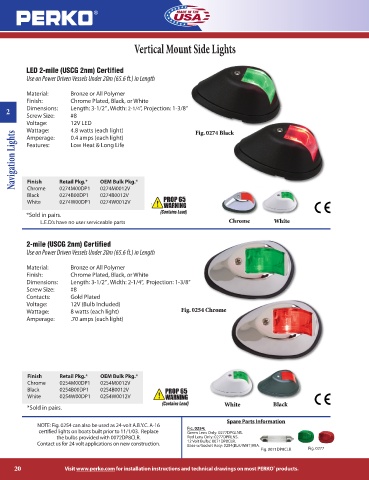

Page 20 - Perko

Vertical Mount Side Lights

LED 2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Bronze or All Polymer
Finish: Chrome Plated, Black, or White
Dimensions: Length: 3-1/2” , Width: 2-1/4”, Projection: 1-3/8”
2
Screw Size: #8
Voltage: 12V LED Fig. 0274 Black
Wattage: 4.8 watts (each light)
Navigation Lights Features: Low Heat & Long Life
Amperage: 0.4 amps (each light)

Finish
0274M00DP1 0274M0012V
Chrome
Black Retail Pkg.* OEM Bulk Pkg.*
0274B00DP1 0274B0012V
White 0274W00DP1 0274W0012V
*Sold in pairs.
L.E.D.’s have no user serviceable parts Chrome White

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Bronze or All Polymer
Finish: Chrome Plated, Black, or White
Dimensions: Length: 3-1/2” , Width: 2-1/4”, Projection: 1-3/8”
Screw Size: #8
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 8 watts (each light) Fig. 0254 Chrome
Amperage: .70 amps (each light)

Finish Retail Pkg.* OEM Bulk Pkg.*
Chrome 0254M00DP1 0254M0012V
Black 0254B00DP1 0254B0012V
White 0254W00DP1 0254W0012V
White Black
*Sold in pairs.

Spare Parts Information
NOTE: Fig. 0254 can also be used as 24-volt A.B.Y.C. A-16 FIG. 0254:
certified lights on boats built prior to 11/1/03. Replace Green Lens Only: 0277DPGLNS.
the bulbs provided with 0072DP8CLR. Red Lens Only: 0277DPRLNS.
Contact us for 24 volt applications on new construction. 12 Volt Bulbs: 0071DP8CLR.
Base w/Socket Assy: 0254(BLK/WHT)99A.
Fig. 0071DP8CLR Fig. 0277

20 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
