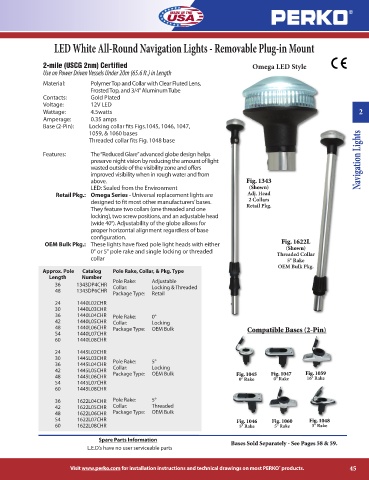

Page 45 - Perko

LED White All-Round Navigation Lights - Removable Plug-in Mount

2-mile (USCG 2nm) Certified Omega LED Style
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Polymer Top and Collar with Clear Fluted Lens,
Frosted Top, and 3/4” Aluminum Tube
Contacts: Gold Plated
Voltage: 12V LED
Wattage: 4.5watts 2
Amperage: 0.35 amps
Base (2-Pin): Locking collar fits Figs.1045, 1046, 1047,
1059, & 1060 bases
Threaded collar fits Fig. 1048 base

Features: The “Reduced Glare” advanced globe design helps
preserve night vision by reducing the amount of light Navigation Lights
wasted outside of the visibility zone and offers
improved visibility when in rough water and from
above. Fig. 1343
LED: Sealed from the Environment (Shown)
Retail Pkg.: Omega Series - Universal replacement lights are Adj. Head
2 Collars
designed to fit most other manufacturers’ bases. Retail Pkg.
They feature two collars (one threaded and one
locking), two screw positions, and an adjustable head
(wide 40°). Adjustability of the globe allows for
proper horizontal alignment regardless of base
configuration.
OEM Bulk Pkg.: These lights have fixed pole light heads with either Fig. 1622L
0° or 5° pole rake and single locking or threaded (Shown)
Threaded Collar
collar 5° Rake
OEM Bulk Pkg.
Approx. Pole Catalog Pole Rake, Collar, & Pkg. Type
Length Number
Pole Rake: Adjustable
36 1343DP4CHR Collar: Locking & Threaded
48 1343DP6CHR
Package Type: Retail
24 1440L02CHR
30 1440L03CHR
36 1440L04CHR Pole Rake: 0°
42 1440L05CHR Collar: Locking
48 1440L06CHR Package Type: OEM Bulk Compatible Bases (2-Pin)
54 1440L07CHR
60 1440L08CHR
24 1445L02CHR
30 1445L03CHR 5°
36 1445L04CHR Pole Rake: Locking
42 1445L05CHR Collar: OEM Bulk Fig. 1047 Fig. 1059
48 1445L06CHR Package Type: Fig. 1045 0° Rake 16° Rake
0° Rake
54 1445L07CHR
60 1445L08CHR
36 1622L04CHR Pole Rake: 5°
42 1622L05CHR Collar: Threaded
48 1622L06CHR Package Type: OEM Bulk
54 1622L07CHR Fig. 1046 Fig. 1060 Fig. 1048
60 1622L08CHR 5° Rake 5° Rake 5° Rake

Spare Parts Information
Bases Sold Separately - See Pages 58 & 59.
L.E.D.’s have no user serviceable parts

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 45
