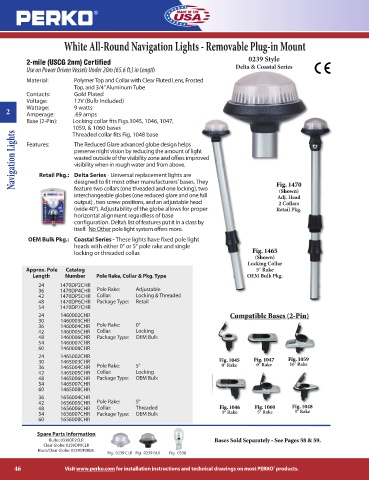

Page 46 - Perko

White All-Round Navigation Lights - Removable Plug-in Mount

0239 Style
2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length Delta & Coastal Series
Material: Polymer Top and Collar with Clear Fluted Lens, Frosted
Top, and 3/4” Aluminum Tube
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 9 watts
2
Amperage: .69 amps
Base (2-Pin): Locking collar fits Figs.1045, 1046, 1047,
1059, & 1060 bases
Navigation Lights Features: The Reduced Glare advanced globe design helps
Threaded collar fits Fig. 1048 base
preserve night vision by reducing the amount of light
wasted outside of the visibility zone and offers improved
visibility when in rough water and from above.

Retail Pkg.: Delta Series - Universal replacement lights are
designed to fit most other manufacturers’ bases. They
feature two collars (one threaded and one locking), two
(Shown)
interchangeable globes (one reduced glare and one full Fig. 1470
Adj. Head
output) , two screw positions, and an adjustable head 2 Collars
(wide 40°). Adjustability of the globe allows for proper Retail Pkg.
horizontal alignment regardless of base
configuration. Delta’s list of features put it in a class by
itself. No Other pole light system offers more.
OEM Bulk Pkg.: Coastal Series - These lights have fixed pole light
heads with either 0° or 5° pole rake and single
locking or threaded collar. Fig. 1465
(Shown)
Locking Collar
Approx. Pole Catalog 5° Rake
Length Number Pole Rake, Collar & Pkg. Type OEM Bulk Pkg.
24 1470DP2CHR
36 1470DP4CHR Pole Rake: Adjustable
42 1470DP5CHR Collar: Locking & Threaded
48 1470DP6CHR Package Type: Retail
54 1470DP7CHR
24 1460002CHR Compatible Bases (2-Pin)
30 1460003CHR
36 1460004CHR Pole Rake: 0°
42 1460005CHR Collar: Locking
48 1460006CHR Package Type: OEM Bulk
54 1460007CHR
60 1460008CHR
24 1465002CHR
30 1465003CHR Fig. 1045 Fig. 1047 Fig. 1059
16° Rake
0° Rake
36 1465004CHR Pole Rake: 5° 0° Rake
42 1465005CHR Collar: Locking
48 1465006CHR Package Type: OEM Bulk
54 1465007CHR
60 1465008CHR
36 1656004CHR
42 1656005CHR Pole Rake: 5°
48 1656006CHR Collar: Threaded Fig. 1046 Fig. 1060 Fig. 1048
54 1656007CHR Package Type: OEM Bulk 5° Rake 5° Rake 5° Rake
60 1656008CHR

Spare Parts Information
Bulbs: 0338DP2CLR Bases Sold Separately - See Pages 58 & 59.
Clear Globe: 0239DP0CLR
Black/Clear Globe: 0239DP0BLK.
Fig. 0239 CLR Fig. 0239 BLK Fig. 0338
46 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
