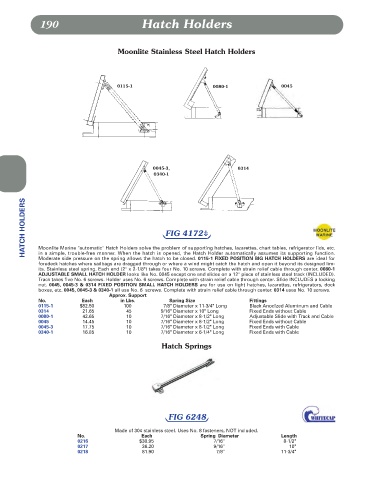

Page 191 - Lewis

190 Hatch Holders

Moonlite Stainless Steel Hatch Holders

0115-1 0080-1 0045

0045-3, 0314
0340-1

HATCH HOLDERS FIG 4172b

Moonlite Marine "automatic" Hatch Holders solve the problem of supporting hatches, lazarettes, chart tables, refrigerator lids, etc.
in a simple, trouble-free manner. When the hatch is opened, the Hatch Holder automatically assumes its supporting function.
Moderate side pressure on the spring allows the hatch to be closed. 0115-1 FIXED POSITION BIG HATCH HOLDERS are ideal for
foredeck hatches where sailbags are dragged through or where a wind might catch the hatch and open it beyond its designed lim-
its. Stainless steel spring. Each end (2" x 2-1/8") takes four No. 10 screws. Complete with strain relief cable through center. 0080-1
ADJUSTABLE SMALL HATCH HOLDER looks like No. 0045 except one end slides on a 12" piece of stainless steel track (INCLUDED).
Track takes five No. 6 screws. Holder uses No. 6 screws. Complete with strain relief cable through center. Slide INCLUDES a locking
nut. 0045, 0045-3 & 0314 FIXED POSITION SMALL HATCH HOLDERS are for use on light hatches, lazarettes, refrigerators, dock
boxes, etc. 0045, 0045-3 & 0340-1 all use No. 6 screws. Complete with strain relief cable through center. 0314 uses No. 10 screws.
Approx. Support
No. Each in Lbs. Spring Size Fittings
0115-1 $82.50 100 7/8" Diameter x 11-3/4" Long Black Anodized Aluminum and Cable
0314 21.65 45 9/16" Diameter x 10" Long Fixed Ends without Cable
0080-1 42.65 10 7/16" Diameter x 8-1/2" Long Adjustable Slide with Track and Cable
0045 14.45 10 7/16" Diameter x 8-1/2" Long Fixed Ends without Cable
0045-3 17.75 10 7/16" Diameter x 8-1/2" Long Fixed Ends with Cable
0340-1 16.85 10 7/16" Diameter x 6-1/4" Long Fixed Ends with Cable
Hatch Springs

FIG 6248

Made of 304 stainless steel. Uses No. 8 fasteners, NOT included.
No. Each Spring Diameter Length
0216 $30.95 7/16" 8-1/2"
0217 36.20 9/16" 10"
0218 81.90 7/8" 11-3/4"
