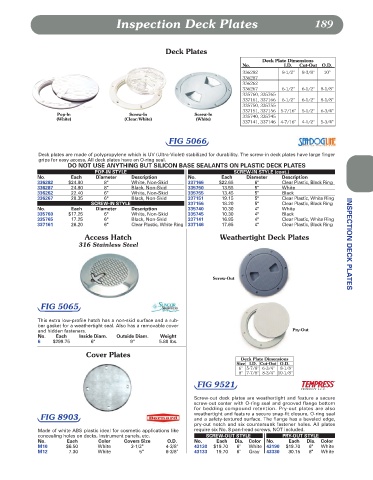

Inspection Deck Plates 189

Deck Plates
Deck Plate Dimensions
No. I.D. Cut-Out O.D.
336282 8-1/2" 8-3/8" 10"
336287
336262
336267 6-1/2" 6-1/2" 8-1/8"
335760, 335765
337161, 337166 6-1/2" 6-1/2" 8-1/8"
335750, 335755
337151, 337156 5-7/16" 5-1/2" 6-3/4"
Pop-In Screw-In Screw-In 335740, 335745
(White) (Clear/White) (White)
337141, 337146 4-7/16" 4-1/2" 5-3/4"

FIG 5066

Deck plates are made of polypropylene which is UV (Ultra-Violet) stabilized for durability. The screw-in deck plates have large finger
grips for easy access. All deck plates have an O-ring seal.
DO NOT USE ANYTHING BUT SILICON BASE SEALANTS ON PLASTIC DECK PLATES
POP-IN STYLE SCREW-IN STYLE (cont.)
No. Each Diameter Description No. Each Diameter Description
336282 $24.80 8" White, Non-Skid 337166 $22.65 6" Clear Plastic, Black Ring
336287 24.80 8" Black, Non-Skid 335750 13.55 5" White
336262 22.40 6" White, Non-Skid 335755 13.45 5" Black
336267 20.35 6" Black, Non-Skid 337151 19.15 5" Clear Plastic, White Ring
SCREW-IN STYLE 337156 18.20 5" Clear Plastic, Black Ring
No. Each Diameter Description 335740 10.30 4" White
335760 $17.25 6" White, Non-Skid 335745 10.30 4" Black
335765 17.25 6" Black, Non-Skid 337141 16.85 4" Clear Plastic, White Ring
337161 26.20 6" Clear Plastic, White Ring 337146 17.65 4" Clear Plastic, Black Ring

Access Hatch Weathertight Deck Plates
316 Stainless Steel INSPECTION DECK PLATES

Screw-Out

FIG 5065

This extra low-profile hatch has a non-skid surface and a rub-
ber gasket for a weathertight seal. Also has a removable cover
and hidden fasteners. Pry-Out
No. Each Inside Diam. Outside Diam. Weight
6 $299.75 6" 9" 5.80 lbs.
Cover Plates
Deck Plate Dimensions
Size I.D. Cut-Out O.D.
6" 5-7/8" 6-3/4" 8-1/8"
8" 7-7/8" 8-3/4" 10-1/8"
FIG 9521

Screw-out deck plates are weathertight and feature a secure
screw-out center with O-ring seal and grooved flange bottom
for bedding compound retention. Pry-out plates are also
weathertight and feature a secure snap-fit closure, O-ring seal
FIG 8903 and a safety-textured surface. The flange has a beveled edge,
pry-out notch and six countersunk fastener holes. All plates
Made of white ABS plastic ideal for cosmetic applications like require six No. 8 pan-head screws, NOT included.
concealing holes on decks, instrument panels, etc. SCREW-OUT STYLE PRY-OUT STYLE
No. Each Color Covers Size O.D. No. Each Dia. Color No. Each Dia. Color
M10 $6.50 White 3-1/2" 4-3/8" 43130 $19.70 6" White 43190 $19.70 6" White
M12 7.30 White 5" 6-3/8" 43133 19.70 6" Gray 43330 30.15 8" White
