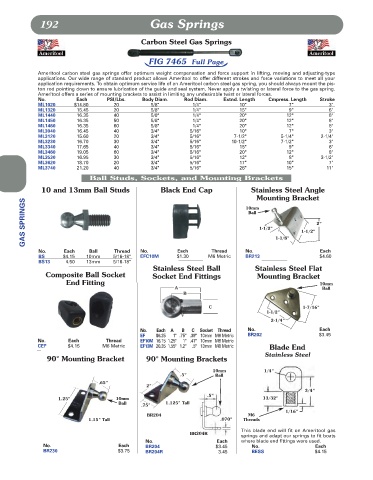

Page 193 - Lewis

192 Gas Springs

Carbon Steel Gas Springs

FIG 7465 Full Page

Ameritool carbon steel gas springs offer optimum weight compensation and force support in lifting, moving and adjusting-type
applications. Our wide range of standard product allows Ameritool to offer different strokes and force variations to meet all your
application requirements. To obtain optimum service life of an Ameritool carbon steel gas spring, you should always mount the pis-
ton rod pointing down to ensure lubrication of the guide and seal system. Never apply a twisting or lateral force to the gas spring.
Ameritool offers a series of mounting brackets to assist in limiting any undesirable twist or lateral forces.
No. Each PSI/Lbs. Body Diam. Rod Diam. Extnd. Length Cmpress. Length Stroke
ML1020 $14.80 20 5/8" 1/4" 10" 7" 3"
ML1320 15.45 20 5/8" 1/4" 15" 9" 6"
ML1440 16.35 40 5/8" 1/4" 20" 12" 8"
ML1450 16.35 50 5/8" 1/4" 20" 12" 8"
ML1460 16.35 60 5/8" 1/4" 20" 12" 8"
ML3040 16.45 40 3/4" 5/16" 10" 7" 3"
ML3120 15.60 20 3/4" 5/16" 7-1/2" 5-1/4" 2-1/4"
ML3230 16.70 30 3/4" 5/16" 10-1/2" 7-1/2" 3"
ML3340 17.65 40 3/4" 5/16" 15" 9" 6"
ML3460 19.05 60 3/4" 5/16" 20" 12" 8"
ML3530 16.95 30 3/4" 5/16" 12" 8" 3-1/2"
ML3620 18.70 20 3/4" 5/16" 17" 10" 7"
ML3740 21.20 40 3/4" 5/16" 26" 15" 11"
Ball Studs, Sockets, and Mounting Brackets

10 and 13mm Ball Studs Black End Cap Stainless Steel Angle
Mounting Bracket
GAS SPRINGS Ball 1-1/2" 1-1/2" 2"
10mm

No. Each Ball Thread No. Each Thread No. 1-1/8" Each
BS $4.15 10mm 5/16-18" EFC10M $1.30 M6 Metric BR213 $4.60
BS13 4.50 13mm 5/16-18"
Stainless Steel Ball Stainless Steel Flat
Composite Ball Socket Socket End Fittings Mounting Bracket
End Fitting 10mm
A Ball
B
C 1-7/16"
1-1/2"
2-1/4"
No. Each A B C Socket Thread No. Each
EF $6.25 1" .75" .39" 10mm M6 Metric BR202 $3.45
No. Each Thread EF10M 16.15 1.25" 1" .41" 10mm M6 Metric
CEF $4.15 M6 Metric EF13M 20.35 1.55" 1.2" .5" 13mm M8 Metric Blade End
Stainless Steel
90° Mounting Bracket 90° Mounting Brackets

10mm 1/4"
.5" Ball
.65"
2"
3/4"
.5"
1.25" 10mm 13/32"
Ball 1.125" Tall
.75"
1/16"
BR204 M6
1.15" Tall .070" Threads
This blade end will fit on Ameritool gas
BR204R
springs and adapt our springs to fit boats
No. Each where blade end fittings were used.
No. Each BR204 $3.45 No. Each
BR230 $3.75 BR204R 3.45 BESS $4.15
