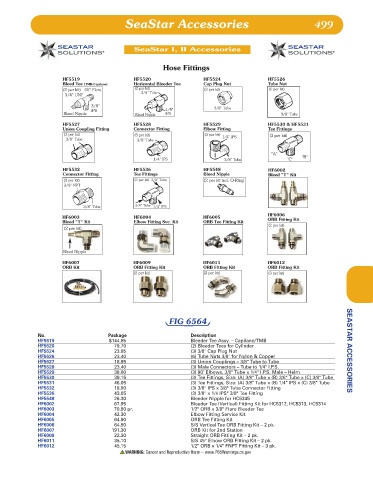

SeaStar Accessories 499

SeaStar I, II Accessories

Hose Fittings
HF5519 HF5520 HF5524 HF5526
Bleed Tee (TMB/Capilano) Horizontal Bleeder Tee Cap Plug Nut Tube Nut
(2 per kit) 45° Flare (2 per kit) (3 per kit) (6 per kit)
3/4" UNF 3/8" Tube
3/8" 3/8" Tube
IPS 1/4"
Bleed Nipple Bleed Nipple IPS 3/8" Tube
HF5527 HF5528 HF5529 HF5530 & HF5531
Union Coupling Fitting Connector Fitting Elbow Fitting Tee Fittings
(3 per kit) (3 per kit) (3 per kit) 1/4" IPS (3 per kit)
3/8" Tube 3/8" Tube

"A"
"B"
1/4" IPS 3/8" Tube "C"
HF5532 HF5536 HF5548 HF6002
Connector Fitting Tee Fittings Bleed Nipple Bleed "T" Kit
(3 per kit) (3 per kit) 3/8" Tube (2 per kit incl. O-Ring)
3/8" NPT

3/8" Tube 3/8" Tube 1/4" IPS
HF6006
HF6003 HF6004 HF6005 ORB Fitting Kit
Bleed "T" Kit Elbow Fitting Svc. Kit ORB Tee Fitting Kit
(2 per kit)
(2 per kit)

Bleed Nipple
HF6007 HF6009 HF6011 HF6012
ORB Kit ORB Fitting Kit ORB Fitting Kit ORB Fitting Kit
(2 per kit) (2 per kit) (3 per kit)

FIG 6564

No. Package Description
HF5519 $144.85 Bleeder Tee Assy. – Capilano/TMB
HF5520 79.70 (2) Bleeder Tees for Cylinder
HF5524 23.85 (3) 3/8" Cap Plug Nut SEASTAR ACCESSORIES
HF5526 23.40 (6) Tube Nuts 3/8" for Nylon & Copper
HF5527 18.95 (3) Union Couplings – 3/8" Tube to Tube
HF5528 23.40 (3) Male Connectors – Tube to 1/4" I.P.S.
HF5529 38.60 (3) 90˚ Elbows, 3/8" Tube x 1/4" I.P.S. Male – Helm
HF5530 39.15 (3) Tee Fittings, Size: (A) 3/8" Tube x (B) 3/8" Tube x (C) 3/8" Tube
HF5531 46.05 (3) Tee Fittings, Size: (A) 3/8" Tube x (B) 1/4" IPS x (C) 3/8" Tube
HF5532 18.90 (3) 3/8" IPS x 3/8" Tube Connector Fitting
HF5536 43.85 (3) 3/8" x 1/4 IPS" 3/8" Tee Fitting
HF5548 26.30 Bleeder Nipple for HC5345
HF6002 67.95 Bleeder Tee (Vertical) Fitting Kit for HC5312, HC5313, HC5314
HF6003 70.90 pr. 1/2" ORB x 3/8" Flare Bleeder Tee
HF6004 42.30 Elbow Fitting Service Kit
HF6005 64.90 ORB Tee Fitting Kit
HF6006 64.90 S/S Vertical Tee ORB Fitting Kit – 2 pk.
HF6007 191.30 ORB Kit for 2nd Station
HF6009 22.30 Straight ORB Fitting Kit – 2 pk.
HF6011 35.10 S/S 45° Elbow ORB Fitting Kit – 2 pk.
HF6012 45.15 1/2" ORB x 1/4" FNPT Fitting Kit – 3 pk.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
