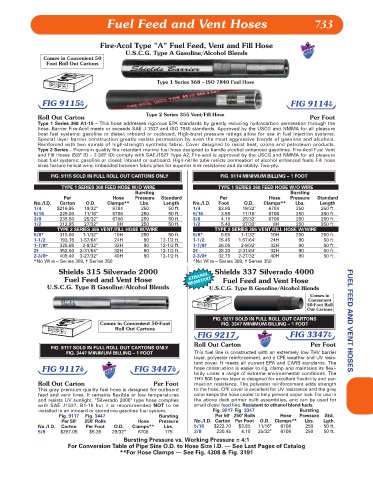

Fuel Feed and Vent Hoses 733

Fire-Acol Type "A" Fuel Feed, Vent and Fill Hose
U.S.C.G. Type A Gasoline/Alcohol Blends
Comes in Convenient 50
Foot Roll Out Cartons

Type 1 Series 368 – ISO 7840 Fuel Hose

FIG 9115b FIG 9114b

Type 2 Series 355 Vent/Fill Hose
Roll Out Carton Per Foot
Type 1 Series 368 A1-15 – This hose addresses rigorous EPA standards by greatly reducing hydrocarbon permeation through the
hose. Barrier Fire-Acol meets or exceeds SAE J 1527 and ISO 7840 standards. Approved by the USCG and NMMA for all pleasure
boat fuel systems: gasoline or diesel; inboard or outboard. High-burst pressure ratings allow for use in fuel injection systems.
Special layer barrier construction greatly resists permeation by even the most aggressive blends of gasoline and alcohols.
Reinforced with two spirals of high-strength synthetic fabric. Cover designed to resist heat, ozone and petroleum products.
Type 2 Series – Premium quality fire retardant marine fuel hose designed to handle alcohol enhanced gasolines. Fire-Acol Fuel Vent
and Fill Hoses (5/8" ID – 2-3/8" ID) comply with SAEJ1527 Type A2. Fire-acol is approved by the USCG and NMMA for all pleasure
boat fuel systems: gasoline or diesel; inboard or outboard. High-nitrile tube resists permeation of alcohol enhanced fuels. Fill hose
sizes feature helical wire, imbedded between fabric plies for superior kink resistance and durability. Two-ply.

FIG. 9115 SOLD IN FULL ROLL OUT CARTONS ONLY FIG. 9114 MINIMUM BILLING – 1 FOOT
TYPE 1 SERIES 368 FEED HOSE W/O WIRE TYPE 1 SERIES 368 FEED HOSE W/O WIRE
Bursting Bursting
Per Hose Pressure Standard Per Hose Pressure Standard
No./I.D. Carton O.D. Clamps** Lbs. Length No./I.D. Foot O.D. Clamps** Lbs. Length
1/4 $216.95 19/32" 6704 250 50 ft. 1/4 $3.80 19/32" 6704 250 250 ft.
5/16 229.00 11/16" 6706 250 50 ft. 5/16 3.95 11/16" 6706 250 250 ft.
3/8 235.50 25/32" 6706 250 50 ft. 3/8 4.15 25/32" 6706 250 250 ft.
1/2 312.95 27/32" 8H 250 50 ft. 1/2 5.40 27/32" 8H 250 250 ft.
TYPE 2 SERIES 355 VENT/FILL HOSE W/WIRE TYPE 2 SERIES 355 VENT/FILL HOSE W/WIRE
5/8* 315.00 1-1/32" 10H 250 50 ft. 5/8* 5.55 1-1/32" 10H 250 250 ft.
1-1/2 193.15 1-57/64" 24H 90 12-1/2 ft. 1-1/2 15.45 1-57/64" 24H 90 50 ft.
1-7/8= 325.65 2-9/32" 32H 90 12-1/2 ft. 1-7/8= 26.05 2-9/32" 32H 90 50 ft.
2= 352.50 2-31/64" 32H 90 12-1/2 ft. 2= 28.20 2-31/64" 32H 90 50 ft.
2-3/8= 409.40 2-27/32" 40H 90 12-1/2 ft. 2-3/8= 32.75 2-27/32" 40H 90 50 ft.
*No Wire – Series 369, = Series 350 *No Wire – Series 369, = Series 350
Shields 315 Silverado 2000 Shields 337 Silverado 4000
ETHANOL
Fuel Feed and Vent Hose RESISTANT Fuel Feed and Vent Hose
U.S.C.G. Type B Gasoline/Alcohol Blends U.S.C.G. Type B Gasoline/Alcohol Blends
Comes in
Convenient
50-Foot Roll
Out Cartons
FIG. 9217 SOLD IN FULL ROLL OUT CARTONS FUEL FEED AND VENT HOSES
Comes in Convenient 50-Foot FIG. 3347 MINIMUM BILLING – 1 FOOT
Roll Out Cartons
FIG 9217 FIG 3347b
Roll Out Carton Per Foot
FIG. 9117 SOLD IN FULL ROLL OUT CARTONS ONLY
FIG. 3447 MINIMUM BILLING – 1 FOOT This fuel line is constructed with an extremely low THV barrier
layer, polyester reinforcement, and a CPE weather and UV resis-
tant cover. It meets all current EPA and CARB standards. The
FIG 9117b FIG 3447b hose construction is easier to rig, clamp and maintains its flexi-
bility under a range of extreme environmental conditions. The
THV 500 barrier layer is designed for excellent flexibility and per-
Roll Out Carton Per Foot meation resistance. The polyester reinforcement adds strength
This gray premium quality fuel hose is designed for outboard to the hose. CPE cover is excellent for UV resistance and the gray
feed and vent lines. It remains flexible at low temperatures color keeps the hose cooler to help prevent vapor lock. For use in
and resists UV sunlight. "Silverado 2000" type hose complies the above deck primer bulb assemblies, and can be used for
with SAE J1527, B1-15 but it is recommended NOT to be small diesel feed line. Resistant to ethanol blend fuels.
installed in an inboard or sterndrive gasoline fuel system. Fig. 9217 Fig. 3347 Bursting
Fig. 9117 Fig. 3447 Bursting Per 50' 250' Rolls Hose Pressure Std.
Per 50' 250' Rolls Hose Pressure No./I.D. Carton Per Foot O.D. Clamps** Lbs. Lgth.
No./I.D. Carton Per Foot O.D. Clamps** Lbs. 5/16 $222.70 $3.85 11/16" 6706 250 50 ft.
5/8 $287.05 $5.35 29/32" 6708 175 3/8 230.45 4.10 25/32" 6706 250 50 ft.
Bursting Pressure vs. Working Pressure = 4:1
For Conversion Table of Pipe Size O.D. to Hose Size I.D. — See Last Pages of Catalog
**For Hose Clamps — See Fig. 4308 & Fig. 3191
